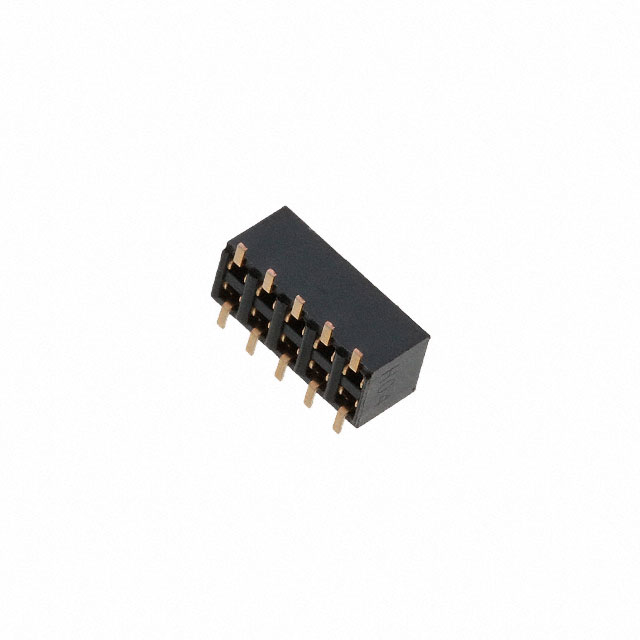

FM20C05VBDN00G7
ActiveMETZ CONNECT USA Inc.
CONN RCPT 10POS 0.079 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM20C05VBDN00G7
ActiveMETZ CONNECT USA Inc.
CONN RCPT 10POS 0.079 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FM20C05VBDN00G7 |
|---|---|
| Connector Type | Receptacle |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Ingress Protection | IP00 |
| Insulation Color | Black |
| Insulation Height | 4.3 mm |
| Insulation Height | 0.169 " |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.50 | |
| 10 | $ 1.14 | |||
| 100 | $ 0.88 | |||
| Digi-Reel® | 1 | $ 1.25 | ||
| 10 | $ 1.06 | |||
| 100 | $ 0.95 | |||
| Tape & Reel (TR) | 4500 | $ 0.63 | ||
Description
General part information
FM20C05VB Series
10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount
