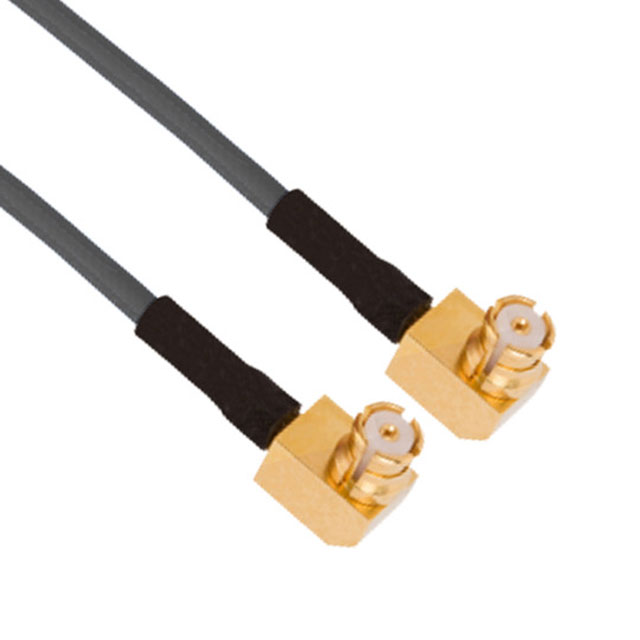

FPA28-PRPR-S08

Active

ConductRF

CBL ASSY SMP JACK TO JACK 8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FPA28-PRPR-S08

Active

ConductRF

CBL ASSY SMP JACK TO JACK 8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FPA28-PRPR-S08

1st Connector	SMP Jack, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	SMP Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	2.18mm OD Coaxial Cable
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	27 GHz
Length	8 in
Length	203.2 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Impedance	50 Ohms
Style	SMP to SMP

FPA28 Series

Part	Connector Impedance	2nd Contact Gender	2nd Connector	Features	Style	1st Connector	1st Connector Mounting Type	Color	Overall Impedance	2nd Connector Mounting Type	Length	Length	Frequency - Max [Max]	Cable Type	1st Contact Gender	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
ConductRF FPA28-PFPF-S12	50 Ohms	Female	SMP Jack	Shielded	SMP to SMP	SMP Jack	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	12 "	304.8 mm	27 GHz	2.18mm OD Coaxial Cable	Female	-55 °C	125 °C
ConductRF FPA28-PRPR-S08	50 Ohms	Female	SMP Jack Right Angle	Shielded	SMP to SMP	Right Angle SMP Jack	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	8 in	203.2 mm	27 GHz	2.18mm OD Coaxial Cable	Female	-55 °C	125 °C
ConductRF FPA28-S1PF-S16	50 Ohms	Female	SMP Jack	Shielded	SMA to SMP	SMA Plug	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)			27 GHz	2.18mm OD Coaxial Cable	Male	-55 °C	125 °C	406.4 mm	16 in
ConductRF FPA28-S1PF-S12	50 Ohms	Female	SMP Jack	Shielded	SMA to SMP	SMA Plug	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	12 "	304.8 mm	27 GHz	2.18mm OD Coaxial Cable	Male	-55 °C	125 °C
ConductRF FPA28-PFPR-S24	50 Ohms	Female	SMP Jack Right Angle	Shielded	SMP to SMP	SMP Jack	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	24 "	609.6 mm	27 GHz	2.18mm OD Coaxial Cable	Female	-55 °C	125 °C
ConductRF FPA28-PFPF-S24	50 Ohms	Female	SMP Jack	Shielded	SMP to SMP	SMP Jack	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	24 "	609.6 mm	27 GHz	2.18mm OD Coaxial Cable	Female	-55 °C	125 °C
ConductRF FPA28-PFPF-S16	50 Ohms	Female	SMP Jack	Shielded	SMP to SMP	SMP Jack	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)			27 GHz	2.18mm OD Coaxial Cable	Female	-55 °C	125 °C	406.4 mm	16 in
ConductRF FPA28-S1PR-S12	50 Ohms	Female	SMP Jack Right Angle	Shielded	SMA to SMP	SMA Plug	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	12 "	304.8 mm	27 GHz	2.18mm OD Coaxial Cable	Male	-55 °C	125 °C
ConductRF FPA28-PRPR-S24	50 Ohms	Female	SMP Jack Right Angle	Shielded	SMP to SMP	Right Angle SMP Jack	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	24 "	609.6 mm	27 GHz	2.18mm OD Coaxial Cable	Female	-55 °C	125 °C
ConductRF FPA28-S1PR-S24	50 Ohms	Female	SMP Jack Right Angle	Shielded	SMA to SMP	SMA Plug	Free Hanging (In-Line)	Black	50 Ohms	Free Hanging (In-Line)	24 "	609.6 mm	27 GHz	2.18mm OD Coaxial Cable	Male	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 95.92
		5	$ 90.27
		10	$ 85.26
		25	$ 76.73
		50	$ 69.75
		100	$ 66.72
		250	$ 63.95
		500	$ 61.38
		1000	$ 59.02

Description

General part information

FPA28 Series

Cable Assembly Coaxial SMP to SMP 2.18mm OD Coaxial Cable 8.000" (203.20mm)
