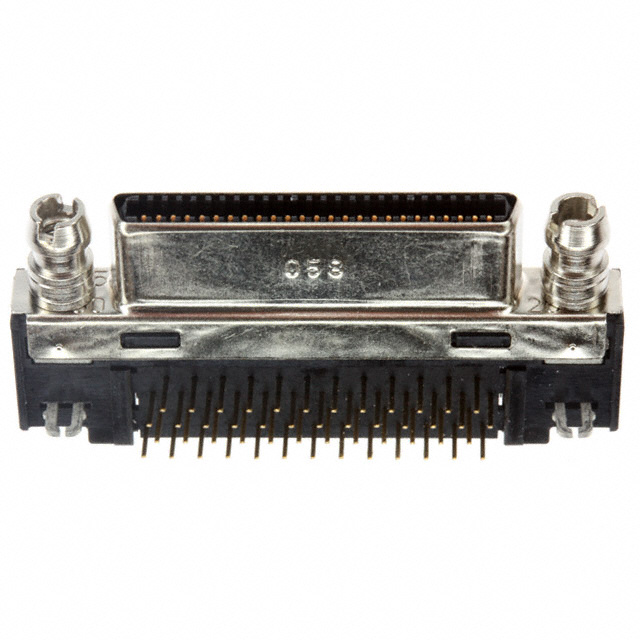

12250-5150-00PL

Obsolete

3M (TC)

CONN RCPT 50POS R/A SOLDER

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RCPT 50POS R/A SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	12250-5150-00PL

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Shielded, Board Lock
Flange Feature	M2
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	50
Number of Rows	2
Termination	Solder

Part	Contact Finish	Mounting Type	Connector Type	Number of Positions	Number of Rows	Flange Feature	Features	Connector Style	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature
3M (TC) 12250-5150-00PL	Gold	Panel Mount Right Angle Through Hole	Receptacle	50	2	M2	Board Lock Shielded	Outer Shroud Contacts	Solder	8 çin	0.203 çm
3M (TC) 12250-5110-00FR	Gold	Panel Mount Right Angle Through Hole	Receptacle	50	2	Housing/Shell	Board Lock Shielded	Outer Shroud Contacts	Solder	30 Áin	0.76 Ám	2.6 M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
