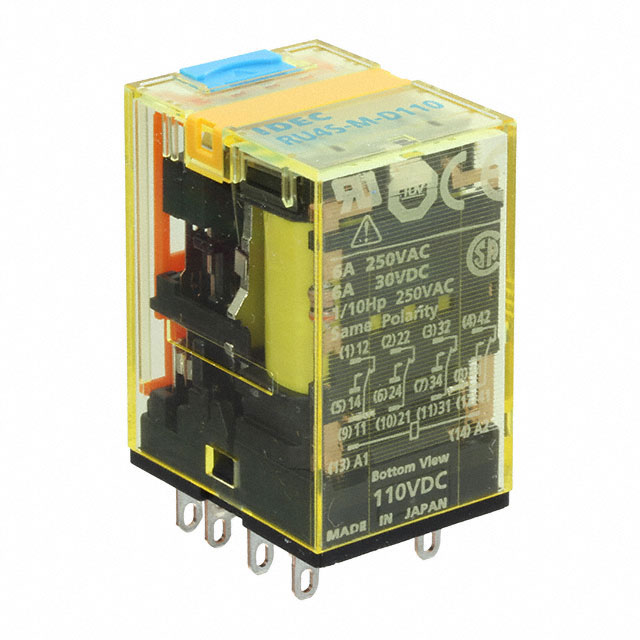

RU4S-M-D110

Active

IDEC

RELAY PLUG-IN 4PDT 6A 110VDC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RU4S-M-D110

Active

IDEC

RELAY PLUG-IN 4PDT 6A 110VDC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RU4S-M-D110

Approval Agency	CSA, TUV, cURus, CE
Coil Current	8.9 mA
Coil Resistance	12.1 kOhms
Coil Type	Non Latching
Coil Voltage	110 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	6 A
Load - Max Switching	2500 VA, 300 W
Mounting Type	Socketable
Must Operate Voltage	88 VDC
Must Release Voltage	11 VAC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

RU4S-M Series

Part	Approval Agency	Contact Rating (Current)	Operate Time	Release Time	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Must Operate Voltage	Switching Voltage [Max]	Relay Type	Mounting Type	Load - Max Switching	Coil Voltage	Termination Style	Coil Resistance	Coil Current	Must Release Voltage	Coil Type	Features
IDEC RU4S-M-D110	CE CSA cURus TUV	6 A	20 ms	20 ms	Gold (Au) Silver (Ag)	-55 °C	60 °C	4PDT (4 Form C)	88 VDC	30 VDC 250 VAC	General Purpose	Socketable	300 W 2500 VA	110 VDC	Plug In	12.1 kOhms	8.9 mA	11 VAC	Non Latching
IDEC RU4S-M-D24	CE CSA cURus TUV	6 A	20 ms	20 ms	Gold (Au) Silver (Ag)	-55 °C	60 °C	4PDT (4 Form C)	19.2 VDC	30 VDC 250 VAC	General Purpose	Socketable	300 W 2500 VA	24 VDC	Plug In	605 Ohms	44.7 mA	2.4 VDC	Non Latching
IDEC RU4S-M-D48	CE CSA cURus TUV	6 A	20 ms	20 ms	Gold (Au) Silver (Ag)	-55 °C	60 °C	4PDT (4 Form C)	38.4 VDC	30 VDC 250 VAC	General Purpose	Socketable	300 W 2500 VA	48 VDC	Plug In 14 Pin	2560 Ohms	18 mA	4.8 VDC	Non Latching	Lighted Indicator Mechanical Indicator
IDEC RU4S-MD-D110	CE CSA cURus TUV	6 A	20 ms	20 ms	Gold (Au) Silver (Ag)	-55 °C	60 °C	4PDT (4 Form C)	88 VDC	30 VDC 250 VAC	General Purpose	Socketable	300 W 2500 VA	110 VDC	Plug In 14 Pin	12.1 kOhms	8.9 mA	11 VDC	Non Latching	Diode Lighted Indicator Mechanical Indicator
IDEC RU4S-MD1-D24	CE CSA cURus TUV	6 A	20 ms	20 ms	Gold (Au) Silver (Ag)	-55 °C	60 °C	4PDT (4 Form C)	19.2 VDC	30 VDC 250 VAC	General Purpose	Socketable	300 W 2500 VA	24 VDC	Plug In 14 Pin	605 Ohms	44.7 mA	2.4 VDC	Non Latching	Diode Lighted Indicator Mechanical Indicator Reverse Coil Polarity
IDEC RU4S-MR-A110	CE CSA cURus TUV	6 A	20 ms	20 ms	Gold (Au) Silver (Ag)	-55 °C	60 °C	4PDT (4 Form C)	88 VAC/DC	30 VDC 250 VAC	General Purpose	Socketable	300 W 2500 VA	110 VAC/DC	Plug In 14 Pin	4.55 kOhms	7.1 mA	33 VAC	Non Latching	Lighted Indicator Mechanical Indicator RC Circuit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.33
		10	$ 12.51
		25	$ 11.86
		50	$ 11.38
		100	$ 10.93
		250	$ 10.36
		500	$ 9.94
		1000	$ 9.55
Newark	Each	1	$ 15.94
		10	$ 15.32
		100	$ 13.75

Description

General part information

RU4S-M Series

General Purpose Relay 4PDT (4 Form C) 110VDC Coil Socketable
