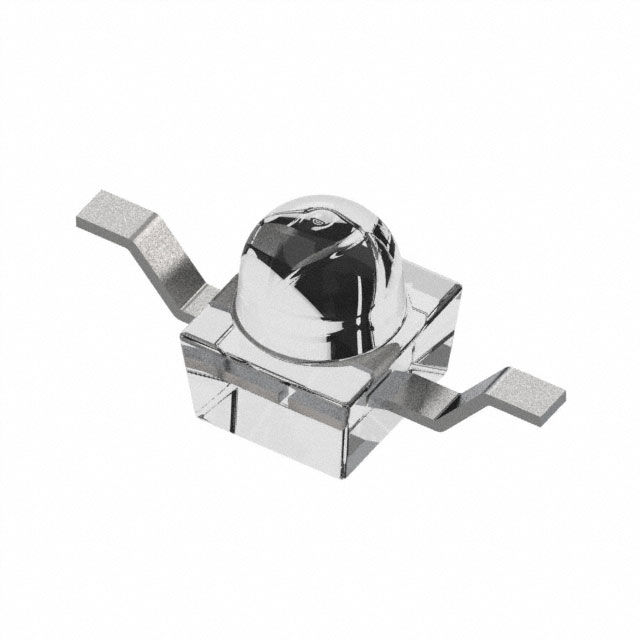

BL-XUB361-TR9
ActiveAmerican Bright Optoelectronics Corporation
LED RED-ORANGE CLR 2SMD BOT ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BL-XUB361-TR9
ActiveAmerican Bright Optoelectronics Corporation
LED RED-ORANGE CLR 2SMD BOT ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BL-XUB361-TR9 |
|---|---|
| Color | Red-Orange |
| Current - Test | 20 mA |
| Height (Max) [Max] | 2.8 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.66 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 100 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension [x] | 2.1 mm |
| Size / Dimension [y] | 2.2 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 35 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 632 nm |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 30000 | $ 0.10 | |
Description
General part information
BL-XUB361 Series
Red-Orange 632nm LED Indication - Discrete 2.1V 2-SMD, Z-Bend
