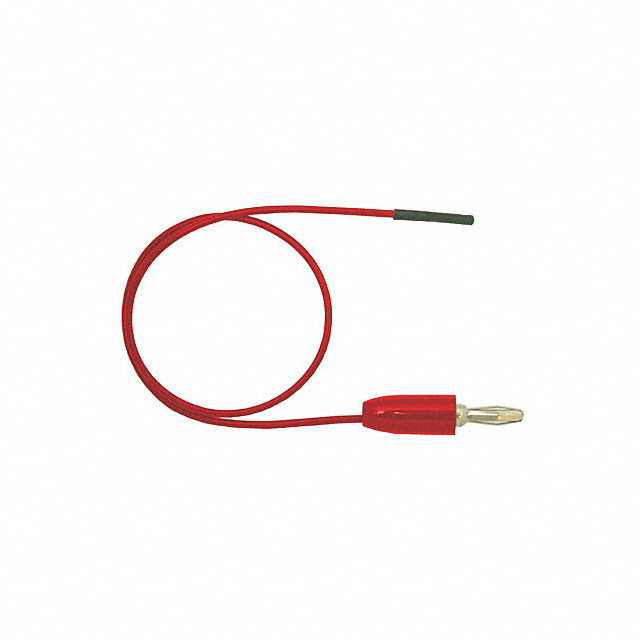

9166-24 RED
ActiveE-Z-Hook
TEST LEAD BANANA TO SOCKET 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9166-24 RED
ActiveE-Z-Hook
TEST LEAD BANANA TO SOCKET 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9166-24 RED |
|---|---|
| 1st Connector | Banana Plug, Single |
| 2nd Connector | Socket, Square |
| 2nd Connector | 0.64 mm |
| 2nd Connector | 0.025 in |
| Cable Length | 24 " |
| Cable Length | 609.6 mm |
| Configuration | Banana to Socket |
| Contents | Red |
| Contents [custom] | 1 |
| Current Rating (Amps) | 2.5 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Stacking Method | Non Stackable |
| Type | Patch Cord |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.08 | |
| 100 | $ 4.57 | |||
| 250 | $ 4.06 | |||
| 500 | $ 3.71 | |||
Description
General part information
9166-24 Series
24.0" (609.60mm) Banana Plug, Single To Socket, Square, 0.025" (0.64mm) Patch Cord 1000V (1kV)
