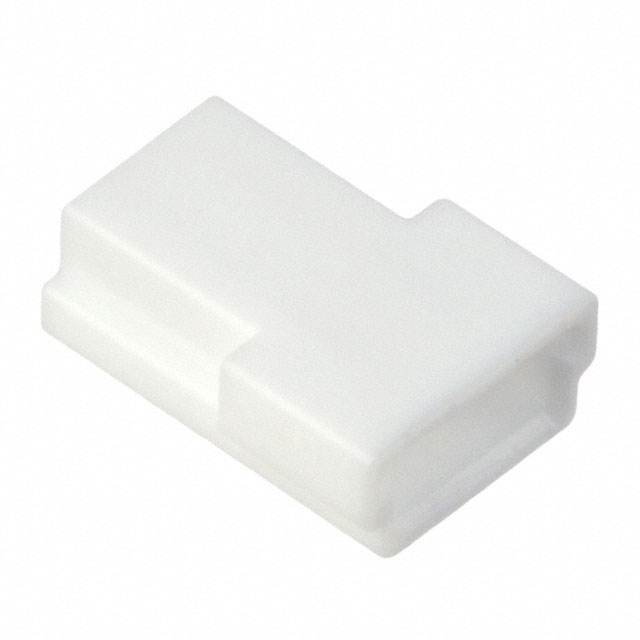

ACHTP-02V-S
ActiveJST Sales America Inc.
CONN PLUG HSG 2POS 1.20MM
Deep-Dive with AI
Search across all available documentation for this part.
ACHTP-02V-S
ActiveJST Sales America Inc.
CONN PLUG HSG 2POS 1.20MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACHTP-02V-S |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 1.2 mm |
| Pitch [x] | 0.047 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.10 | |||
Description
General part information
ACHTP-02 Series
2 Rectangular Connectors - Housings Plug Natural 0.047" (1.20mm)
