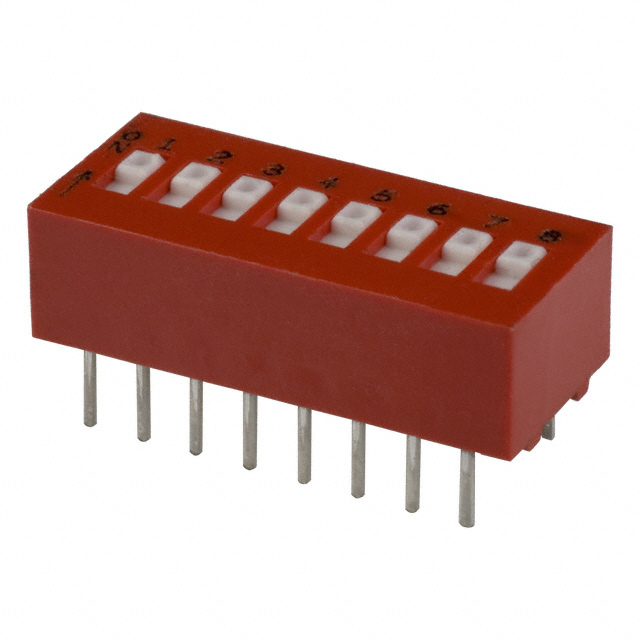

78RB08ST
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.15A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
78RB08ST
ActiveGrayhill Inc.
SWITCH SLIDE DIP SPST 0.15A 30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 78RB08ST |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Electrical Life | 2000 Steps |
| Features | Tape Seal |
| Height Above Board | 0.265 in |
| Height Above Board | 6.73 mm |
| Length | 22.35 mm |
| Length | 0.88 in |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 30 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.46 | |
| 12 | $ 4.27 | |||
| 36 | $ 3.90 | |||
| 108 | $ 3.38 | |||
| 252 | $ 3.07 | |||
| 504 | $ 2.84 | |||
| 1008 | $ 2.64 | |||
| 2508 | $ 2.40 | |||
Description
General part information
78RB08 Series
Dip Switch SPST 8 Position Through Hole Slide (Standard) Actuator 150mA 30VDC
