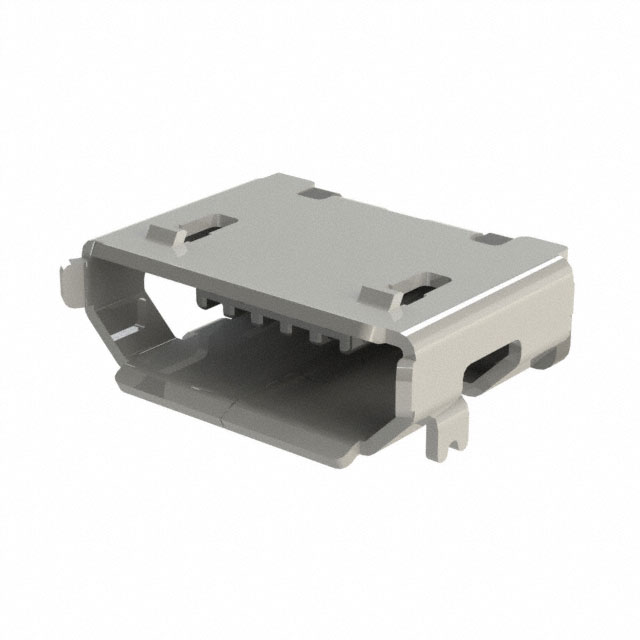

USB3080-30-00-A

Active

GCT

MICRO USB CONN, 2.0 TYPE B R/A RCPT, 5P ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

GCT

MICRO USB CONN, 2.0 TYPE B R/A RCPT, 5P ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	USB3080-30-00-A

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 1 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Steel (SUS304)
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

Part	Connector Type	Specifications	Contact Finish	Shielding	Number of Contacts	Insulation Color	Mating Cycles	Termination	Voltage - Rated	Current Rating (Amps)	Material Flammability Rating	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Gender	Shell/Shielding Material
GCT USB3080-30-00-A	USB - micro B	USB 2.0	Gold	Shielded	5	Black	10000	Solder	30 VAC	1 A 1.8 A	UL94 V-0	1	-30 ░C	85 °C	Surface Mount Right Angle	Receptacle	Steel (SUS304)
GCT USB3080-30-01-A	USB - micro B	USB 2.0	Gold	Shielded	5	Black	10000	Solder	30 VAC	1 A 1.8 A	UL94 V-0	1	-30 ░C	85 °C	Surface Mount Right Angle	Receptacle	Steel (SUS304)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.70
	Digi-Reel®	1	$ 0.70
	Tape & Reel (TR)	6000	$ 0.32
Newark	Each (Supplied on Full Reel)	500	$ 0.59

General part information

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
