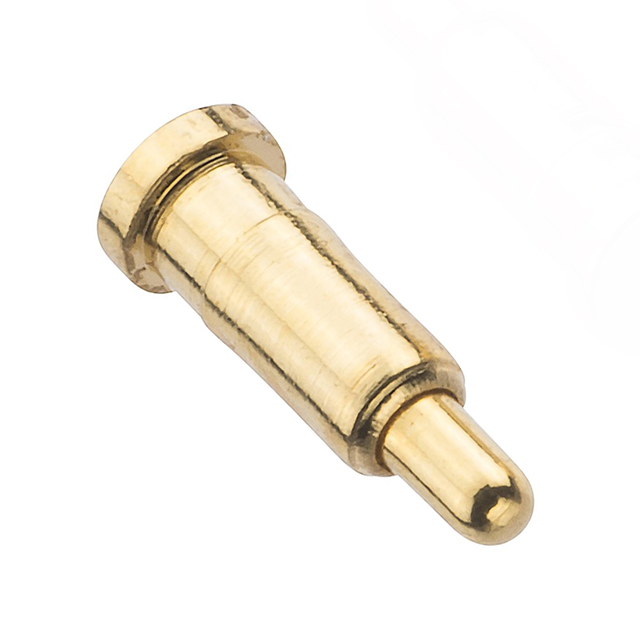

P70-1020045R

Active

Harwin Inc.

INDIVIDUAL SMT SPRING LOADED POGO PIN, 5.5MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

INDIVIDUAL SMT SPRING LOADED POGO PIN, 5.5MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	P70-1020045R

Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Material	Brass
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	2 A
Mating Cycles	10000
Maximum Working Height [Max]	4.7 mm
Maximum Working Height [Max]	0.185 in
Mounting Type	Surface Mount
Operating Force - Mid Compression	119.31 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pad Layout Dimension [diameter]	2.2 mm
Pad Layout Dimension [diameter]	0.087 in
Plunger Size [diameter]	0.035 in
Plunger Size [diameter]	0.9 mm
Recommended Working Height [z]	4.5 mm
Recommended Working Height [z]	0.177 "

Part	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Contact Material	Contact Type	Plunger Size [diameter]	Plunger Size [diameter]	Mating Cycles	Operating Force - Mid Compression	Maximum Working Height [Max]	Maximum Working Height [Max]	Contact Finish Thickness	Contact Finish Thickness	Recommended Working Height [z]	Recommended Working Height [z]	Mounting Type	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]
Harwin Inc. P70-1020045R	2.2 mm	0.087 in	Brass	Sleeve & Plunger (Pogo Pins)	0.035 in	0.9 mm	10000	119.31 gf	4.7 mm	0.185 in	16 µin	0.41 µm	4.5 mm	0.177 "	Surface Mount	2 A	Gold	85 °C	-40 °C
