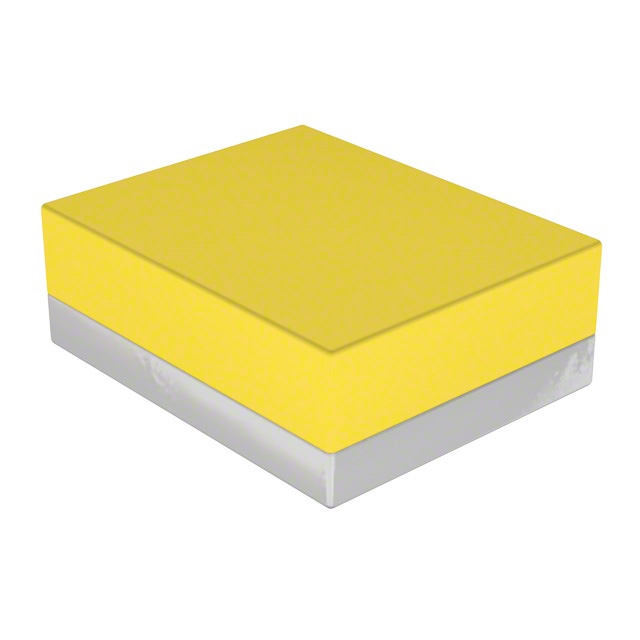

EHP-C04/NT01H-P01/TR
ActiveEverlight Electronics Co Ltd
LED COOL WHITE 5700K 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
EHP-C04/NT01H-P01/TR
ActiveEverlight Electronics Co Ltd
LED COOL WHITE 5700K 2SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EHP-C04/NT01H-P01/TR |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| Current - Max [Max] | 1 A |
| Current - Test | 500 mA |
| Flux @ 25°C, Current - Test | 85 lm |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Lumens/Watt @ Current - Test | 52 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Size / Dimension [x] | 0.08 " |
| Size / Dimension [x] | 2.04 mm |
| Size / Dimension [y] | 1.64 mm |
| Size / Dimension [y] | 0.065 in |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EHP-C04 Series
LED Lighting - White, Cool 5700K (4500K ~ 7000K) 3.25V 500mA 130° 0806 (2016 Metric)
Documents
Technical documentation and resources
No documents available
