0369210402

Active

Molex

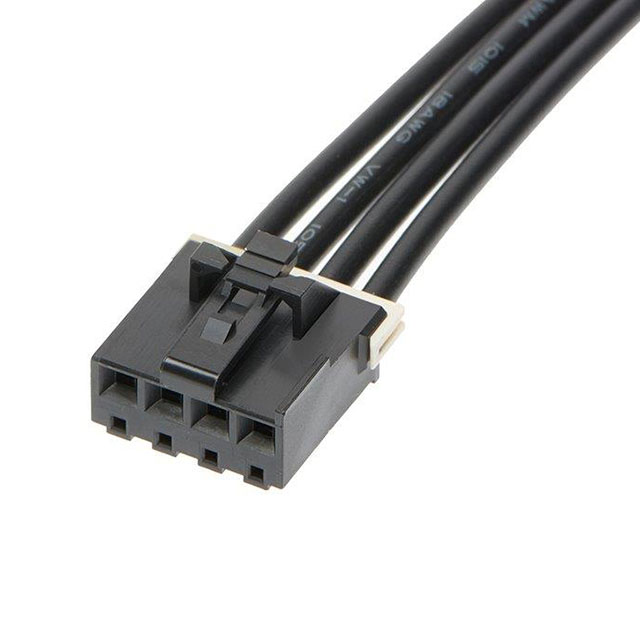

MOLEX LINK396 04P 150MM OTS ASSY

Search across all available documentation for this part.

Active

Molex

MOLEX LINK396 04P 150MM OTS ASSY

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions	Shielding	Connector Type	Features	Cable Termination	Contact Finish	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length [x]
Molex 0369210402	150 mm	5.91 "	0.492 ft	200 Áin	5.08 Ám	1	4	Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm
Molex 0369210500	75 mm	2.95 in	0.246 ft	200 Áin	5.08 Ám	1		Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm
Molex 0369210510				200 Áin	5.08 Ám	1		Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm	1 m	3.28 ft
Molex 0369210203				200 Áin	5.08 Ám	1	2	Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm	300 mm	0.984 '	11.81 "
Molex 0369210400	75 mm	2.95 in	0.246 ft	200 Áin	5.08 Ám	1	4	Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm
Molex 0369210503				200 Áin	5.08 Ám	1		Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm	300 mm	0.984 '	11.81 "
Molex 0369210610				200 Áin	5.08 Ám	1	6	Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm	1 m	3.28 ft
Molex 0369210200	75 mm	2.95 in	0.246 ft	200 Áin	5.08 Ám	1	2	Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm
Molex 0369210602	150 mm	5.91 "	0.492 ft	200 Áin	5.08 Ám	1	6	Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm
Molex 0369210302	150 mm	5.91 "	0.492 ft	200 Áin	5.08 Ám	1		Unshielded	Socket to Socket	Latch Lock	Crimp	Tin	0.156 in	3.96 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1400	$ 3.02
Newark	Each	250	$ 3.45
		500	$ 3.22
		1000	$ 2.85
Sager	N/A	1400	$ 2.89
		2800	$ 2.54

General part information

4 Position Cable Assembly Rectangular Socket to Socket 0.492' (150.00mm, 5.91")
