5530711100F

Active

DIALIGHT

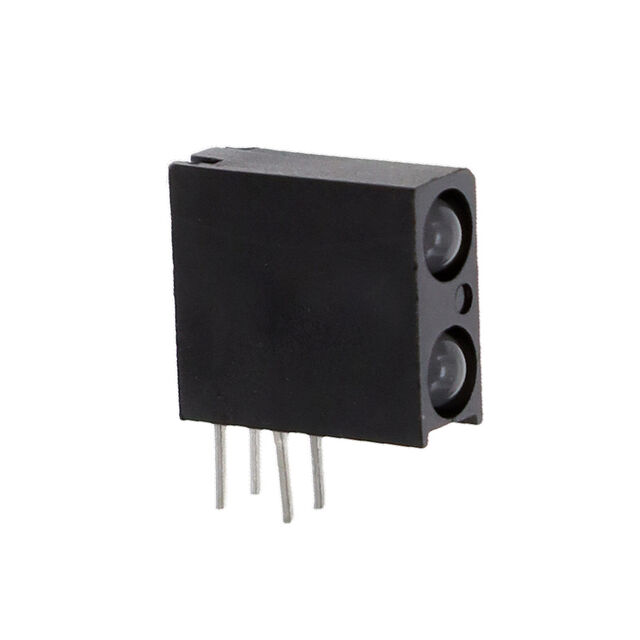

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530711100F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530711100F

Color	Red, Green
Configuration	2 High
Current	10 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Clear
Millicandela Rating [custom]	10 mcd
Millicandela Rating [custom]	4.7 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.1 V, 2 V
Wavelength - Peak	565 nm, 635 nm

5530711 Series

Part	Lens Size	Lens Size	Mounting Type	Lens Style	Viewing Angle	Wavelength - Peak	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Type	Voltage Rating	Current	Configuration	Lens Size [diameter]
DIALIGHT 5530711801F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top
DIALIGHT 5530711012F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	60 °	565 nm 635 nm	Green Red	10 mcd	4.7 mcd	Clear	2 V 2.1 V	10 mA	2 High
DIALIGHT 5530711310F			Through Hole Right Angle	Round with Domed Top										3 mm
DIALIGHT 5530711510F			Through Hole Right Angle	Round with Domed Top	60 °	565 nm 635 nm	Green Red	10 mcd	4.7 mcd	Clear	2 V 2.1 V	10 mA	2 High	3 mm
DIALIGHT 5530711100F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	60 °	565 nm 635 nm	Green Red	10 mcd	4.7 mcd	Clear	2 V 2.1 V	10 mA	2 High
DIALIGHT 5530711200F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	60 °	565 nm 635 nm	Green Red	10 mcd	4.7 mcd	Clear	2 V 2.1 V	10 mA	2 High
DIALIGHT 5530711830F			Through Hole Right Angle	Round with Domed Top										3 mm
DIALIGHT 5530711010F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	60 °	565 nm 635 nm	Green Red	10 mcd	4.7 mcd		2 V 2.1 V	10 mA	2 High
DIALIGHT 5530711300F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top	50 °	565 nm 635 nm	Green Red	10 mcd	4.7 mcd	Clear	2 V 2.1 V	10 mA	2 High
DIALIGHT 5530711202F	3 mm	T-1	Through Hole Right Angle	Round with Domed Top

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.43
		10	$ 2.30
		100	$ 1.72
		500	$ 1.50
		1000	$ 1.43
		2000	$ 1.37
		5000	$ 1.31

Description

General part information

5530711 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Red (x 2) Clear 2.1V Green, 2V Red 10mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
