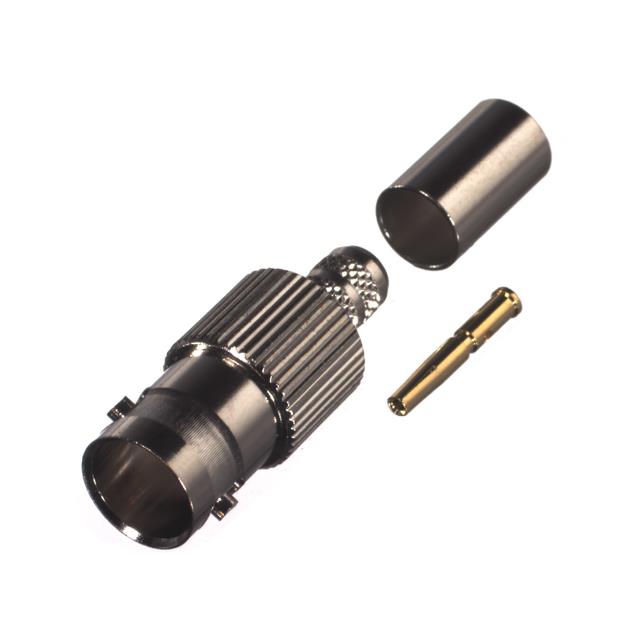

RFB-1724-S

Active

RF Industries

BNC FEMALE CRIMP; 75 OHMS

Search across all available documentation for this part.

Active

RF Industries

BNC FEMALE CRIMP; 75 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFB-1724-S

Body Finish	Nickel
Body Material	Brass
Cable Group	179A, 187, 187A, 179, RG-161
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	75 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Cable Group	Mounting Type	Center Contact Material	Number of Ports	Body Material	Shield Termination	Frequency - Max [Max]	Housing Color	Dielectric Material	Impedance	Center Contact Plating	Connector Style	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Contact Termination	Voltage Rating
RF Industries RFB-1724-S	179 179A 187 187A RG-161	Free Hanging (In-Line)	Phosphor Bronze	1	Brass	Crimp	2 GHz	Silver	Polytetrafluoroethylene (PTFE)	75 Ohms	Gold	BNC	Bayonet Lock	Female Socket Jack	-65 ░C	165 °C	Nickel	Crimp	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
