333-027-544-108
ActiveEDAC Inc.

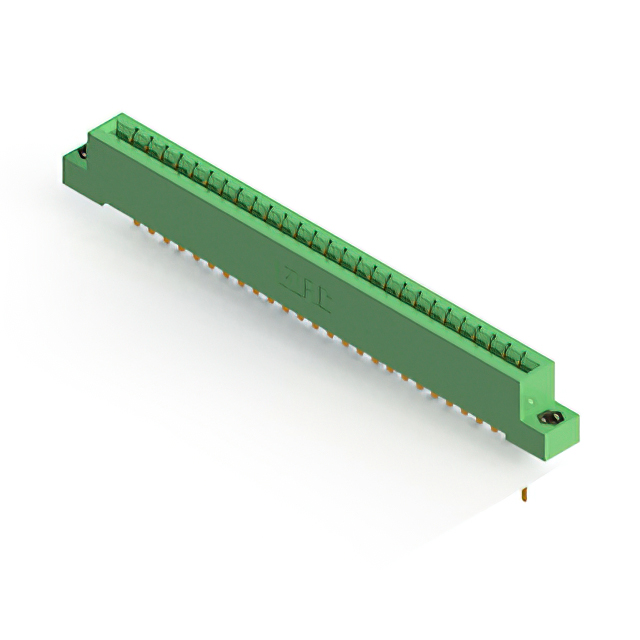

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
333-027-544-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-027-544-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
333-027 Series
| Part | Card Type | Read Out | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Finish | Termination | Flange Feature | Number of Positions/Bay/Row [custom] | Contact Type | Termination Rows | Number of Rows | Pitch [x] | Pitch [x] | Mounting Type | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Wire Wrap | 4-40 Flush Mount Threaded Insert Top Opening | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Wire Wrap | Flush Mount Side Opening Unthreaded | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole Right Angle | Copper Alloy | 3.25 mm | 0.128 " | ||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Wire Wrap | Floating Bobbin Flush Mount | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 2.95 mm | 0.116 in | ||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Solder Eyelet(s) | Flush Mount Side Opening Unthreaded | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 3.25 mm | 0.128 " | ||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Wire Wrap | Floating Bobbin Top Mount Opening | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 2.95 mm | 0.116 in | ||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Wire Wrap | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Solder | M3 Threaded Insert Top Mount Opening | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole Right Angle | Copper Alloy | ||||
EDAC Inc. | Non Specified - Single Edge | Single | Female | -40 °C | 105 ░C | Polyester Thermoplastic | 27 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Green | Gold | Solder | Flush Mount Top Opening Unthreaded | 27 | Cantilever | 1 | 1 | 0.156 in | 3.96 mm | Through Hole | Copper Alloy | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-027 Series
27 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
