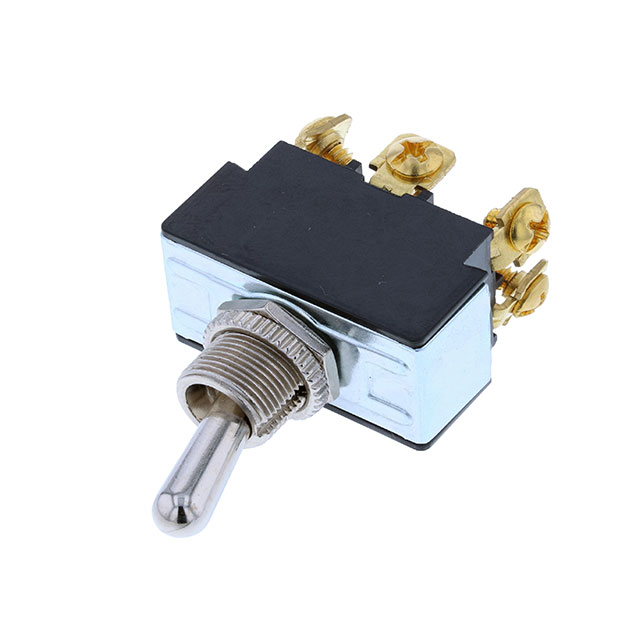

TB1-2E-DC-6
ActiveSwitch Components
SWITCH TOGGLE DPDT 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB1-2E-DC-6
ActiveSwitch Components
SWITCH TOGGLE DPDT 20A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB1-2E-DC-6 |
|---|---|
| Actuator Length [x] | 16.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | DPDT |
| Current Rating (Amps) | 21 A, 20 A |
| Electrical Life | 6000 Cycles |
| Illumination | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.24 | |
| 10 | $ 7.89 | |||
| 25 | $ 7.57 | |||
| 50 | $ 7.42 | |||
| 100 | $ 7.17 | |||
| 250 | $ 6.64 | |||
| 500 | $ 5.54 | |||
| 1000 | $ 5.07 | |||
Description
General part information
TB1-2E Series
Toggle Switch DPDT Panel Mount
