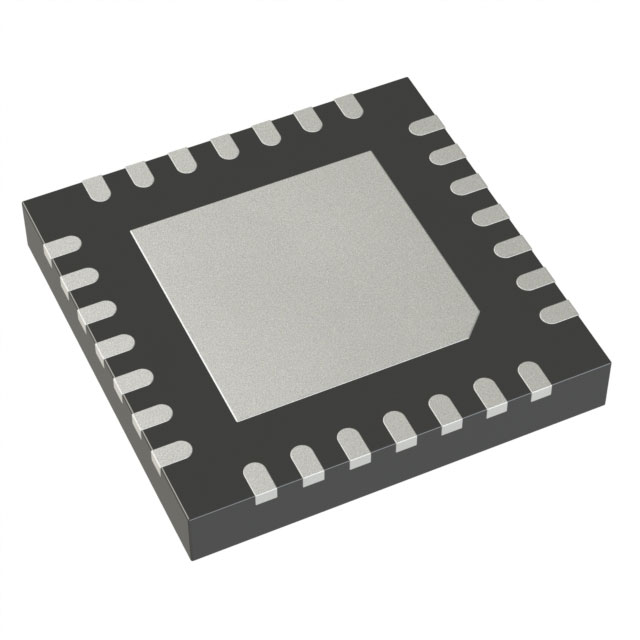

DSPIC33FJ16MC102-E/ML
ActiveMicrochip Technology
MCU 16-BIT DSPIC33 DSPIC RISC 16KB FLASH 3.3V 28-PIN QFN EP TUBE
Deep-Dive with AI
Search across all available documentation for this part.
DSPIC33FJ16MC102-E/ML
ActiveMicrochip Technology
MCU 16-BIT DSPIC33 DSPIC RISC 16KB FLASH 3.3V 28-PIN QFN EP TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSPIC33FJ16MC102-E/ML |
|---|---|
| Connectivity | LINbus, I2C, IrDA, SPI, UART/USART |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Data Converters [custom] | 10 b |
| Data Converters [custom] | 6 |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of I/O | 21 I/O |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 28-VQFN Exposed Pad |
| Peripherals | WDT, Motor Control PWM, Brown-out Detect/Reset, POR, PWM |
| Program Memory Size | 16 KB |
| Program Memory Type | FLASH |
| Qualification | AEC-Q100 |
| RAM Size | 1 K |
| Speed | 16 MIPs |
| Supplier Device Package | 28-QFN (6x6) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 244 | $ 2.99 | |
| Microchip Direct | TUBE | 1 | $ 3.60 | |
| 25 | $ 3.30 | |||
| 100 | $ 2.99 | |||
| 1000 | $ 2.74 | |||
| 5000 | $ 2.61 | |||
Description
General part information
dsPIC33FJ16MC102 Series
An
ultra low cost, high performance 16-bit motor control family of digital signal
controllers featuring CTMU, MCPWMs, PPS and other advanced peripherals with low
