D4MBAU
ActiveSwitchcraft Inc.

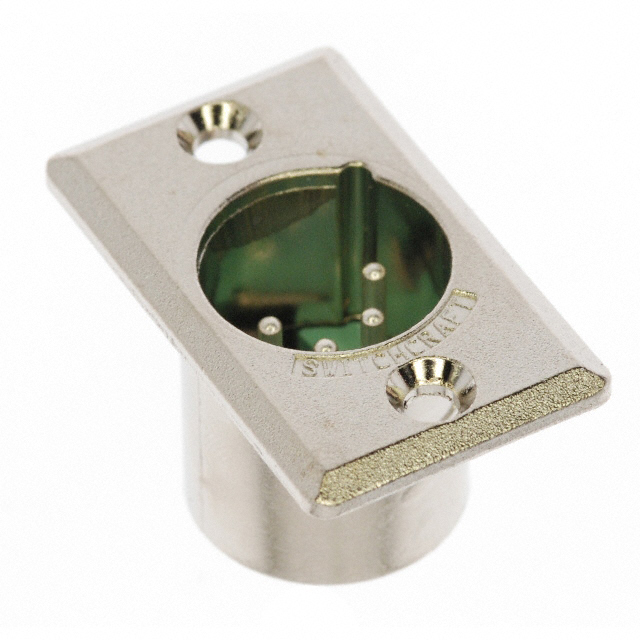

CONN RCPT MALE XLR 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D4MBAU
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 4P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D4MBAU |
|---|---|
| Applications | Audio, Instrumentation |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 10 A |
| Fastening Type | Latch Lock |
| Features | Ground |
| Insert Material | Polyester |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black |
| Shell Material | Zinc |
| Shell Size - Insert | XLR |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 15.72 | |
Description
General part information
D4M Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
