C3AAG-4006M

Active

CW Industries

IDC CABLE - CSC40G/AE40M/CSC40G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC40G/AE40M/CSC40G

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Number of Rows	Pitch - Connector	Pitch - Connector	Contact Finish	Length	Length	Length	Shielding	Connector Type	Cable Termination	Color	Length [x]	Length [x]
CW Industries C3AAG-4006G	40	10 Áin	0.25 Ám	0.05 "	1.27 mm	2	0.1 in	2.54 mm	Gold	152.4 mm	6 "	0.5 '	Unshielded	Socket to Socket	IDC
CW Industries C3AAG-4006M	40	10 Áin	0.25 Ám	0.05 "	1.27 mm	2	0.1 in	2.54 mm	Gold	152.4 mm	6 "	0.5 '	Unshielded	Socket to Socket	IDC	Multiple Ribbon
CW Industries C3AAG-4036M	40	10 Áin	0.25 Ám	0.05 "	1.27 mm	2	0.1 in	2.54 mm	Gold				Unshielded	Socket to Socket	IDC	Multiple Ribbon	3 ft	914.4 mm
CW Industries C3AAG-4018M	40	10 Áin	0.25 Ám	0.05 "	1.27 mm	2	0.1 in	2.54 mm	Gold				Unshielded	Socket to Socket	IDC	Multiple Ribbon	1.5 ft	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

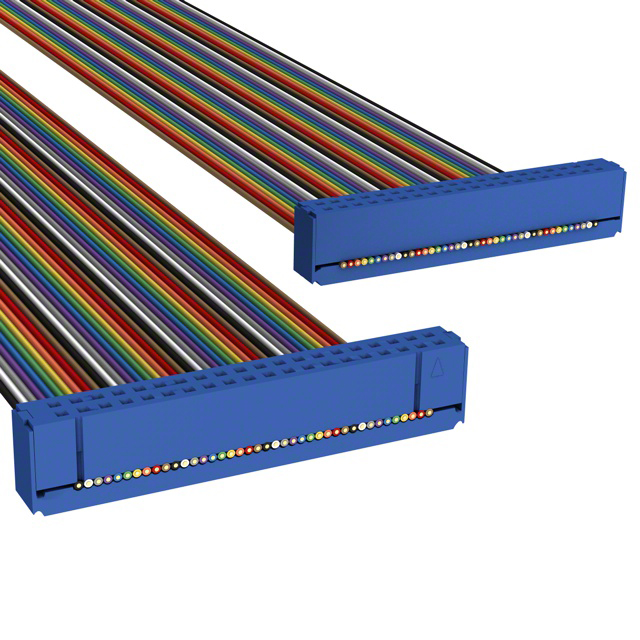

40 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
