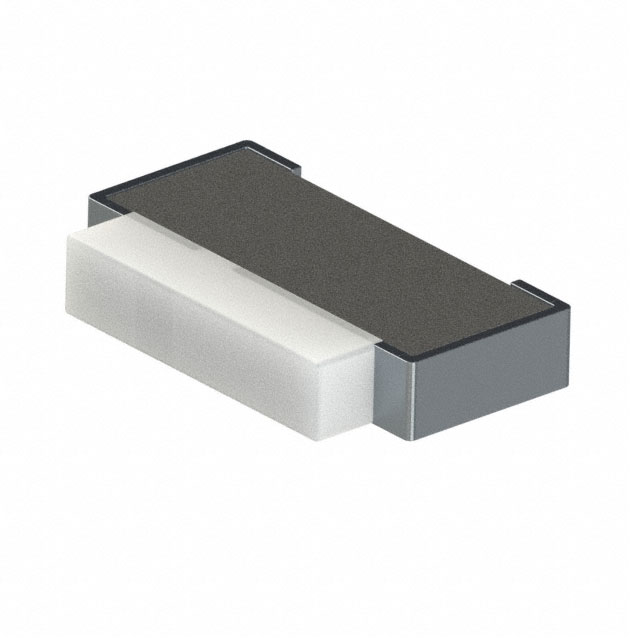

CL-482T-WS-SD-TS
ActiveCitizen Finedevice Co Ltd
LED WHITE SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
CL-482T-WS-SD-TS
ActiveCitizen Finedevice Co Ltd
LED WHITE SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CL-482T-WS-SD-TS |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 0.3 mm |
| Lens Size [x] | 1.8 mm |
| Lens Size [y] | 0.3 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 115 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [y] | 1 mm |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.49 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 2000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.49 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 2000 | $ 0.22 | |||
| Tape & Reel (TR) | 5000 | $ 0.21 | ||
| 10000 | $ 0.20 | |||
| 15000 | $ 0.19 | |||
| 25000 | $ 0.19 | |||
| 35000 | $ 0.18 | |||
| 50000 | $ 0.18 | |||
Description
General part information
CL-482 Series
White LED Indication - Discrete 2.9V 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
