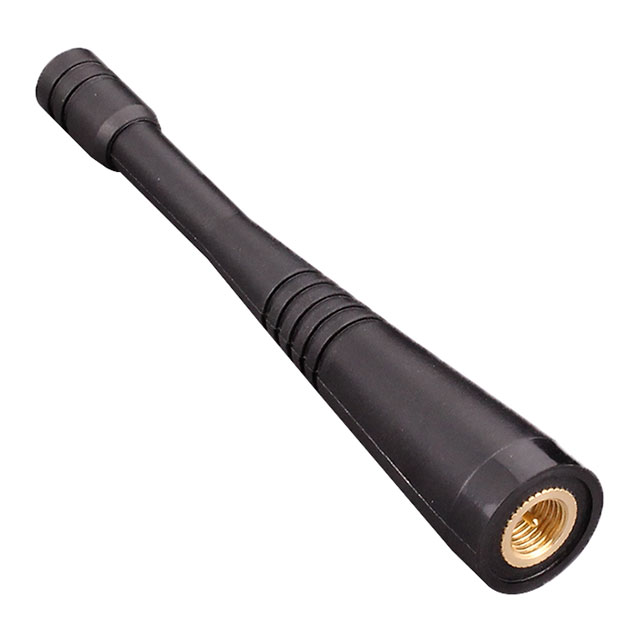

ANT-B5-CW-QW-SMA
ActiveTE Connectivity Linx
RF ANT LTE B5 WHIP STR SMA PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-B5-CW-QW-SMA
ActiveTE Connectivity Linx
RF ANT LTE B5 WHIP STR SMA PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-B5-CW-QW-SMA |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | NB-IoT, GSM, LTE, UMTS |
| Features | O-Ring Compatible |
| Frequency (Center/Band) | 800 MHz, 850 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 900 MHz |
| Frequency Range [Min] | 800 MHz |
| Gain | 1.2 dBi |
| Height (Max) [Max] [z] | 83.5 mm |
| Height (Max) [Max] [z] | 3.287 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 200 | $ 6.65 | |
Description
General part information
ANT-B5 Series
RF ANTENNA GSM, LTE, NB-IoT, UMTS Whip, Straight SMA Male Connector Mount
