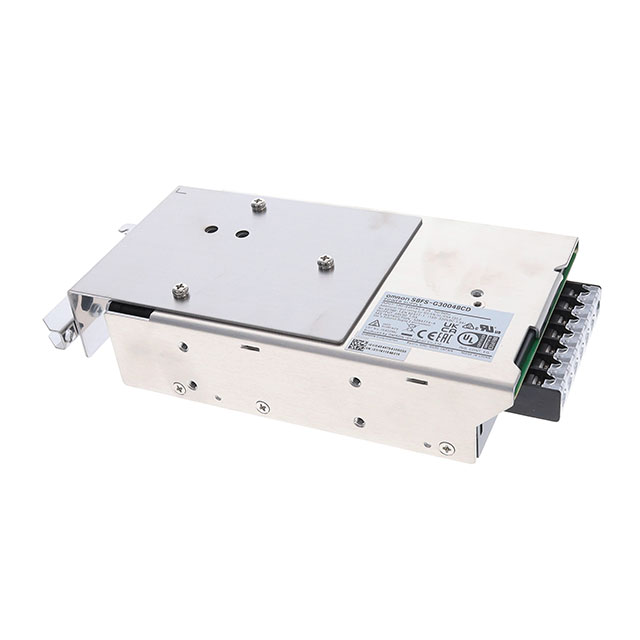

S8FS-G30048CD

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 48V 300W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 48V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	S8FS-G30048CD

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CSA, cUR, UL, CE
Current - Output (Max)	7 A
Efficiency	87 %
Features	Adjustable Output, Universal Input
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	300 W
Size / Dimension [x]	170 mm
Size / Dimension [x]	6.69 "
Size / Dimension [y]	102 mm
Size / Dimension [y]	4.02 in
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Minimum Load Required	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Features	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Approval Agency	Current - Output (Max)	Efficiency	Input Type	Voltage - Output 1	Applications
Omron Electronics Inc-EMC Div S8FS-G30048CD		85 VAC	264 VAC	3000 V	Adjustable Output Universal Input	300 W	-20 °C	70 °C	170 mm	1.61 "	102 mm	6.69 "	4.02 in	41 mm	1	CE CSA cUR UL	7 A	87 %	AC	48 V	Industrial ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 300W
