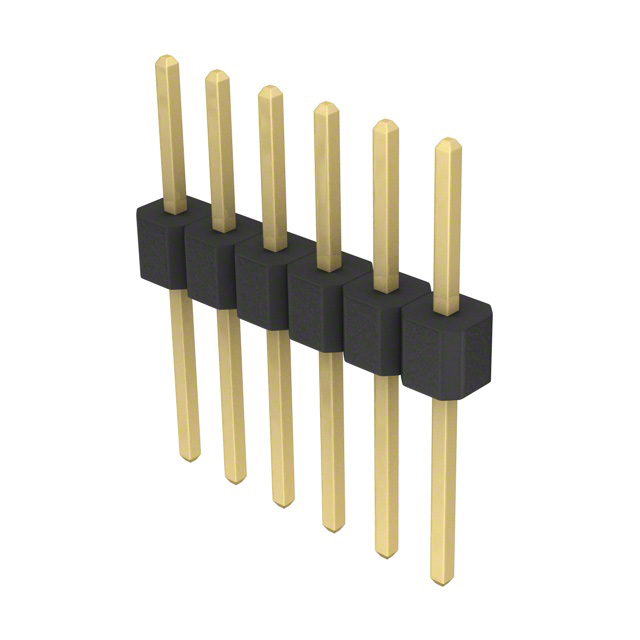

PRPC006SACN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC006SACN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC006SACN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	16.47 mm
Overall Contact Length	0.648 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC006 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Type	Insulation Height	Insulation Height	Number of Positions	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Style	Number of Rows	Contact Finish - Mating	Insulation Material	Material Flammability Rating	Connector Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Termination	Contact Material	Mounting Type	Shrouding	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PRPC006DGAN-M71RC	0.12 in	3.05 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Gold	Male Pin	0.197 in	5 mm	12	0.318 "	8.08 mm	Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	2	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole Right Angle	Unshrouded	Square
Sullins Connector Solutions PRPC006SAAN-RC	0.12 in	3.05 mm	0.1 in	2.54 mm	All			Gold	Male Pin			6	0.23 in		Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	1	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole	Unshrouded	Square	0.448 in	11.39 mm	5.84 mm	0.098 in	2.5 mm
Sullins Connector Solutions PRPC006DABN-RC			0.1 in	2.54 mm	All	2.54 mm	0.1 in	Gold	Male Pin			12	0.23 in		Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	2	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole	Unshrouded	Square	0.558 in	14.18 mm	5.84 mm	0.098 in	2.5 mm	0.23 in	5.84 mm
Sullins Connector Solutions PRPC006SACN-RC	0.32 in	8.13 mm	0.1 in	2.54 mm	All			Gold	Male Pin			6	0.23 in		Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	1	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole	Unshrouded	Square	0.648 in	16.47 mm	5.84 mm	0.098 in	2.5 mm
Sullins Connector Solutions PRPC006SADN-RC	0.42 in	10.67 mm	0.1 in	2.54 mm	All			Gold	Male Pin			6	0.23 in		Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	1	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole	Unshrouded	Square	0.748 in	19.01 mm	5.84 mm	0.098 in	2.5 mm
Sullins Connector Solutions PRPC006SBCN-M71RC	0.32 in	8.13 mm	0.1 in	2.54 mm	All			Gold	Male Pin			6	0.23 in		Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	1	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole Right Angle	Unshrouded	Square			5.84 mm	0.098 in	2.5 mm
Sullins Connector Solutions PRPC006SGAN-M71RC	0.12 in	3.05 mm	0.1 in	2.54 mm	All			Gold	Male Pin			6	0.318 "	8.08 mm	Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	1	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole Right Angle	Unshrouded	Square				0.098 in	2.5 mm
Sullins Connector Solutions PRPC006DFAN-RC	0.12 in	3.05 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Gold	Male Pin			12	0.318 "	8.08 mm	Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	2	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole	Unshrouded	Square		0.537 "		0.098 in	2.5 mm			13.63 mm
Sullins Connector Solutions PRPC006DBAN-M71RC	0.12 in	3.05 mm	0.1 in	2.54 mm	All	2.54 mm	0.1 in	Gold	Male Pin	0.197 in	5 mm	12	0.23 in		Flash	Push-Pull	-40 °C	105 ░C	Black	Board to Board Cable	2	Gold	Polybutylene Terephthalate (PBT)	UL94 V-0	Breakaway Header	3 A	Flash	Solder	Brass	Through Hole Right Angle	Unshrouded	Square			5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.55
		10	$ 0.42
		100	$ 0.32
		500	$ 0.27
		1000	$ 0.25
		5000	$ 0.21
		10000	$ 0.20

Description

General part information

PRPC006 Series

Connector Header Through Hole 6 position 0.100" (2.54mm)
