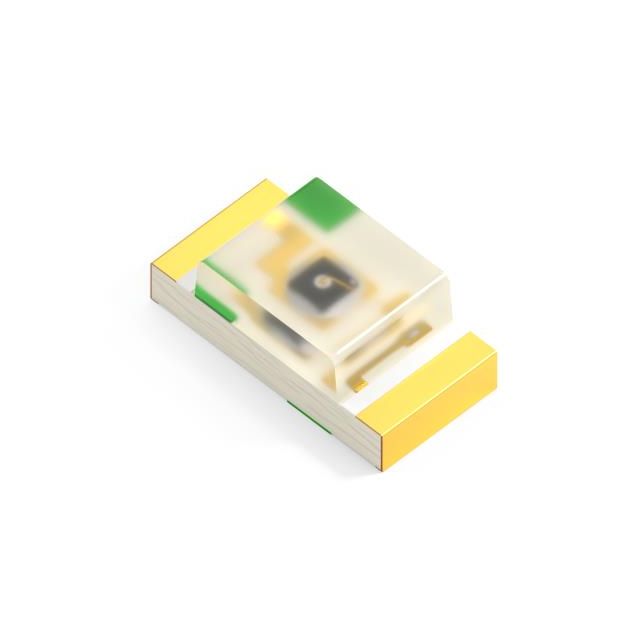

XZRNI55W

Active

SunLED

3.2X1.6MM PHOTOTRANSISTOR SMD 12

Search across all available documentation for this part.

Active

SunLED

3.2X1.6MM PHOTOTRANSISTOR SMD 12

Technical Specifications

Parameters and characteristics for this part

Specification	XZRNI55W

Current - Collector (Ic) (Max) [Max]	400 µA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	1206 (3216 Metric)
Power - Max [Max]	100 mW
Viewing Angle	160 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Wavelength	Current - Collector (Ic) (Max) [Max]	Viewing Angle	Orientation	Current - Dark (Id) (Max) [Max]	Package / Case
SunLED XZRNI55W	85 °C	-40 °C	100 mW	30 V	Surface Mount	940 nm	400 µA	160 °	Top View	100 nA	1206 (3216 Metric)
SunLED XZRNI55W-3	85 °C	-40 °C	100 mW	30 V	Surface Mount				Top View	100 nA	1206 (3216 Metric)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 940nm Top View 1206 (3216 Metric)
