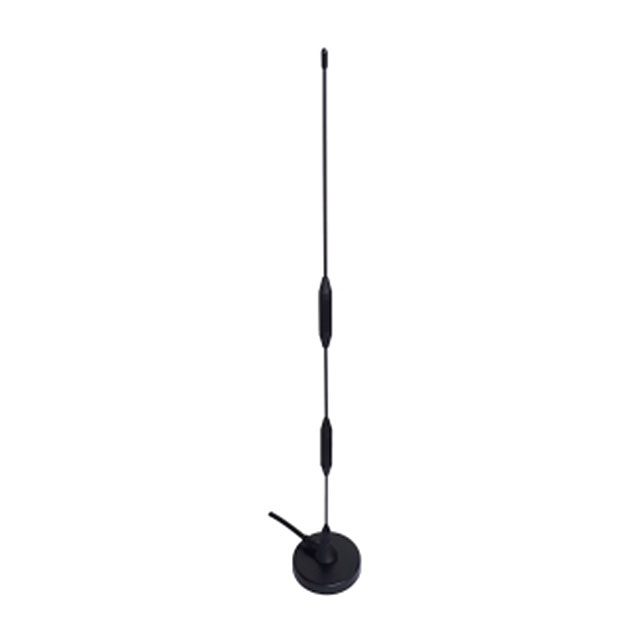

MIKE15/2.5M/FMEF/S/S/26

Active

Siretta Ltd

MAGNETIC MOUNT QUAD BAND GSM, 3G

Search across all available documentation for this part.

Active

Siretta Ltd

MAGNETIC MOUNT QUAD BAND GSM, 3G

Technical Specifications

Parameters and characteristics for this part

Specification	MIKE15/2.5M/FMEF/S/S/26

Antenna Type	Whip, Straight
Applications	Wi-Fi, WLAN, UMTS, LTE, ISM, Zigbee™, GSM, Bluetooth
Features	Cable
Features	2.5 m
Frequency (Center/Band)	2.2 GHz, 825 MHz
Frequency Group [Max]	1 GHz, 3 GHz
Frequency Group [Min]	300 MHz, 2 GHz
Frequency Range [Max]	2.7 GHz, 960 MHz
Frequency Range [Min]	1.7 GHz, 690 MHz
Gain	5 dBi
Mounting Type	Magnetic
Number of Bands	2
RF Family/Standard	Bluetooth, Cellular, 802.15.4, General ISM, WiFi
Termination	FME Female
VSWR	2

Part	Number of Bands	Frequency Group [Min]	Frequency Group [Max]	Features	Features	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	RF Family/Standard	Gain	Mounting Type	Applications	Termination	Antenna Type	VSWR
Siretta Ltd MIKE15/2.5M/FMEF/S/S/26	2	2 GHz 300 MHz	1 GHz 3 GHz	Cable	2.5 m	1.7 GHz 690 MHz	2.7 GHz 960 MHz	2.2 GHz 825 MHz	802.15.4 Bluetooth Cellular General ISM WiFi	5 dBi	Magnetic	Bluetooth GSM ISM LTE UMTS Wi-Fi WLAN Zigbee™	FME Female	Whip Straight	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 45.93

General part information

RF ANTENNA Bluetooth, GSM, ISM, LTE, UMTS, Wi-Fi, WLAN, Zigbee™ Whip, Straight FME Female Magnetic
