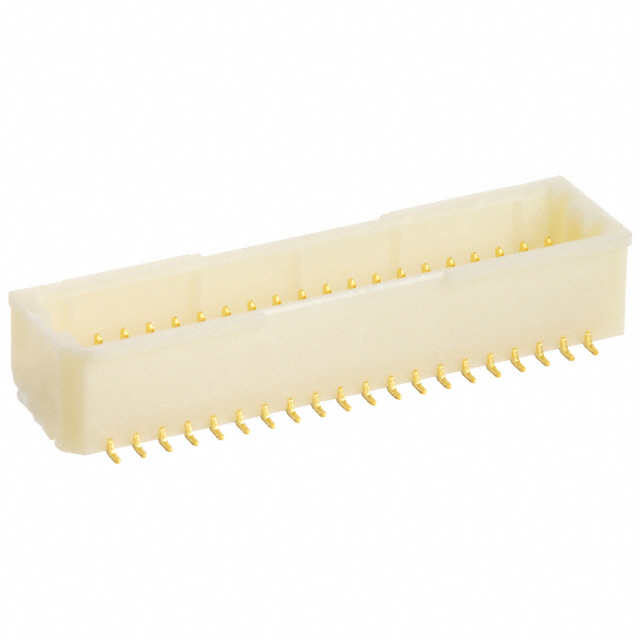

BM40B-SRDS-G-TF

Active

JST Sales America Inc.

CONN HEADER SMD 40POS 1MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 40POS 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM40B-SRDS-G-TF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Solder Retention
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	6.3 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Shrouding	Mated Stacking Heights	Connector Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Style	Number of Rows	Material Flammability Rating	Mounting Type	Contact Shape	Number of Positions Loaded	Termination	Features	Insulation Color	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Number of Positions	Insulation Height	Insulation Height	Contact Type	Fastening Type
JST Sales America Inc. BM40B-SRDS-G-TF	Shrouded - 4 Wall	6.3 mm	Header	50 V	0.039 in	1 mm	Board to Cable/Wire	2	UL94 V-0	Surface Mount	Square	All	Solder	Pick and Place Solder Retention	Natural	Phosphor Bronze	Glass Filled Nylon Polyamide (PA)	-25 °C	85 °C	Gold	40	0.167 in	4.25 mm	Male Pin	Push-Pull
