A03XAF03XAF22K152B

Active

JST Sales America Inc.

JUMPER 03XAF-2S - 03XAF-2S 6"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 03XAF-2S - 03XAF-2S 6"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Length	Length	Cable Termination	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Length	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A03XAF03XAF22K305A	1	1 ft	304.8 mm	IDC	Socket to Socket Reversed	2.5 mm	0.098 in	Tin
JST Sales America Inc. A03XAF03XAF22K51B	1	0.167 '	50.8 mm	IDC	Socket to Socket	2.5 mm	0.098 in	Tin	2 "
JST Sales America Inc. A03XAF03XAF22K203A	1	0.667 ft	203.2 mm	IDC	Socket to Socket Reversed	2.5 mm	0.098 in	Tin	8 in
JST Sales America Inc. A03XAF03XAF22K152B	1		152.4 mm	IDC	Socket to Socket	2.5 mm	0.098 in	Tin	6 "	0.5 '
JST Sales America Inc. A03XAF03XAF22K152A	1		152.4 mm	IDC	Socket to Socket Reversed	2.5 mm	0.098 in	Tin	6 "	0.5 '
JST Sales America Inc. A03XAF03XAF22K254A	1	0.833 ft	254 mm	IDC	Socket to Socket Reversed	2.5 mm	0.098 in	Tin	10 in
JST Sales America Inc. A03XAF03XAF22K102B	1			IDC	Socket to Socket	2.5 mm	0.098 in	Tin			4 "	0.333 ft	101.6 mm
JST Sales America Inc. A03XAF03XAF22K102A	1			IDC	Socket to Socket Reversed	2.5 mm	0.098 in	Tin			4 "	0.333 ft	101.6 mm
JST Sales America Inc. A03XAF03XAF22K305B	1	1 ft	304.8 mm	IDC	Socket to Socket	2.5 mm	0.098 in	Tin
JST Sales America Inc. A03XAF03XAF22K203B	1	0.667 ft	203.2 mm	IDC	Socket to Socket	2.5 mm	0.098 in	Tin	8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

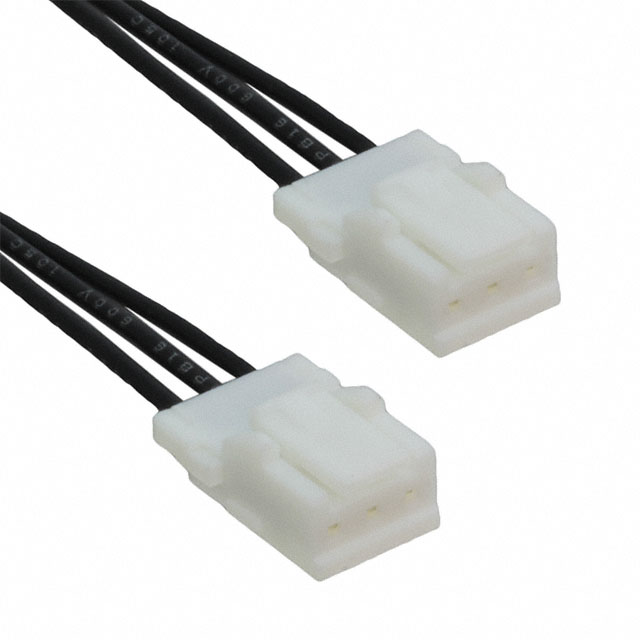

3 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
