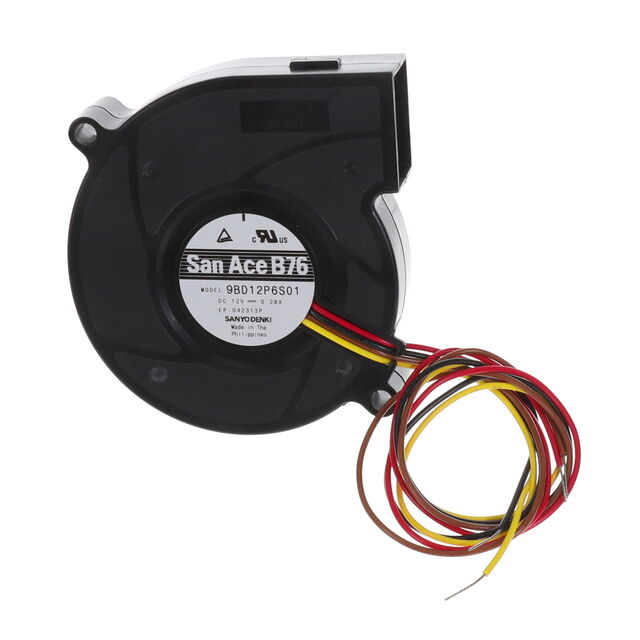

9BD12P6S01

Active

Sanyo Denki America Inc.

FAN BLOWER 76X20MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumber System Blower

9BD12P6S01

Active

Sanyo Denki America Inc.

FAN BLOWER 76X20MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumber System Blower

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9BD12P6S01

Air Flow	0.286 mł/min
Air Flow	10.2 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.28 A
Fan Type	Blower
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	43 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.36 W
RPM	4500 RPM
Size / Dimension [x]	76 mm
Size / Dimension [y]	69.7 mm
Static Pressure	298.9 Pa
Static Pressure	1.2 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	5 VDC
Weight	0.128 lb
Weight	58.06 g
Width [y]	20 mm

9BD12 Series

Part	Voltage - Rated	Approval Agency	Power (Watts)	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	RPM	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Range [Min]	Voltage Range [Max]	Weight	Weight	Bearing Type	Fan Type	Noise	Termination	Material - Blade	Air Flow	Air Flow	Width [y]	Lifetime @ Temp.	Static Pressure	Static Pressure	Features
Sanyo Denki America Inc. 9BD12HA6-1	12 VDC	cURus TUV	2.52 W	0.21 A	76 mm	69.7 mm	4200 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	5.5 VDC	13.8 VDC	0.128 lb	58.06 g	Ball	Blower	41 dB	2 Wire Leads	Plastic	9.5 CFM	0.266 m³/min	20 mm	40000 Hrs	229.2 Pa	0.92 in H2O
Sanyo Denki America Inc. 9BD12FD6-1	12 VDC	cURus TUV	2.16 W	0.18 A	76 mm	69.7 mm	3900 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	5.5 VDC	13.8 VDC	0.128 lb	58.06 g	Ball	Blower	39 dB(A)	3 Wire Leads	Plastic	8.8 CFM	0.246 mł/min	20 mm	40000 Hrs			Locked Rotor Sensor
Sanyo Denki America Inc. 9BD12FC6-1	12 VDC	cURus TUV	2.16 W	0.18 A	76 mm	69.7 mm	3900 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	5.5 VDC	13.8 VDC	0.128 lb	58.06 g	Ball	Blower	39 dB(A)	3 Wire Leads	Plastic	8.8 CFM	0.246 mł/min	20 mm	40000 Hrs			Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9BD12P6S01	12 VDC	cURus TUV	3.36 W	0.28 A	76 mm	69.7 mm	4500 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	5 VDC	13.8 VDC	0.128 lb	58.06 g	Ball	Blower	43 dB	4 Wire Leads	Plastic	10.2 CFM	0.286 mł/min	20 mm	40000 Hrs	298.9 Pa	1.2 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9BD12HC6-1	12 VDC	cURus TUV	2.52 W	0.21 A	76 mm	69.7 mm	4200 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	5.5 VDC	13.8 VDC	0.128 lb	58.06 g	Ball	Blower	41 dB	3 Wire Leads	Plastic	9.5 CFM	0.266 m³/min	20 mm	40000 Hrs	229.2 Pa	0.92 in H2O	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.13
		10	$ 22.04
		40	$ 21.20
		80	$ 19.81
		120	$ 18.27
		280	$ 18.00
		520	$ 17.86

Description

General part information

9BD12 Series

Fan Blower 12VDC Rectangular/Rounded - 76mm L x 69.7mm H Ball 10.2 CFM (0.286mł/min) 4 Wire Leads
