UPD70F3575GKA2-GAK-E2-AX

Active

Renesas Electronics Corporation

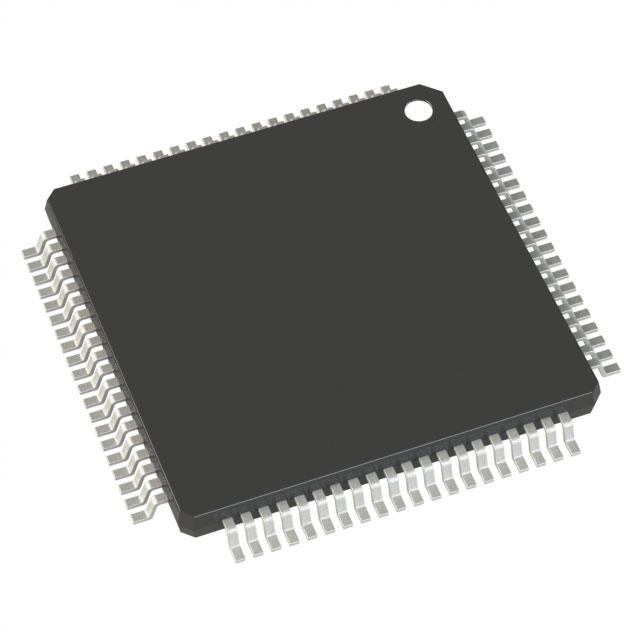

IC MCU 32BIT 512KB FLASH 80LQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UPD70F3575GKA2-GAK-E2-AX

Active

Renesas Electronics Corporation

IC MCU 32BIT 512KB FLASH 80LQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD70F3575GKA2-GAK-E2-AX

Connectivity	LINbus, CANbus, UART/USART, CSI, I2C
Core Processor	V850E2S
Core Size	32-Bit
Data Converters	A/D 14x10b SAR
EEPROM Size	32 K
Mounting Type	Surface Mount
Number of I/O	61
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	80-LQFP
Peripherals	DMA, LVD, PWM, POR, WDT
Program Memory Size	512 KB
Program Memory Type	FLASH
Speed	48 MHz
Supplier Device Package	80-LFQFP (12x12)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3 V

V850E2/Fx4-L Series

32-bit Microcontrollers (Non Promotion)

Part	Program Memory Size	Oscillator Type	Supplier Device Package	RAM Size	Package / Case	Number of I/O	Core Size	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters	Data Converters	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	EEPROM Size	Program Memory Type	Core Processor	Connectivity	Speed	Data Converters [custom]	Data Converters [custom]
Renesas Electronics Corporation UPD70F3577GCA-UEU-E2-AX	384 KB	Internal	100-LFQFP (14x14)	28 K	100-LQFP	76	32-Bit	Surface Mount	85 °C	-40 °C	10 b 20	SAR	DMA LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz
Renesas Electronics Corporation UPD70F3575GKA-GAK-AX	512 KB	Internal	80-LFQFP (12x12)		80-LQFP	61	32-Bit	Surface Mount	85 °C	-40 °C			DMA LCD LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz	10 b	14
Renesas Electronics Corporation UPD70F3580GCA2-UEU-AX	1 MB	Internal	100-LFQFP (14x14)	64 K	100-LQFP	76	32-Bit	Surface Mount	125 °C	-40 °C	10 b 20	SAR	DMA LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	64 MHz
Renesas Electronics Corporation UPD70F3574GKA2-GAK-AX	384 KB	Internal	80-LFQFP (12x12)	28 K	80-LQFP	61	32-Bit	Surface Mount	125 °C	-40 °C			DMA LCD LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz	10 b	14
Renesas Electronics Corporation UPD70F3572GBA-GAH-AX	512 KB	Internal	64-LFQFP (10x10)		64-LQFP	45	32-Bit	Surface Mount	85 °C	-40 °C	10 b 12		DMA LCD LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz
Renesas Electronics Corporation UPD70F3579GCA1-UEU-QS-AX	768 KB	Internal	100-LFQFP (14x14)		100-LQFP	76	32-Bit	Surface Mount	110 °C	-40 °C	10 b 20		DMA LCD LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	64 MHz
Renesas Electronics Corporation UPD70F3575GKA2-GAK-E2-AX	512 KB	Internal	80-LFQFP (12x12)		80-LQFP	61	32-Bit	Surface Mount	125 °C	-40 °C		A/D 14x10b SAR	DMA LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz
Renesas Electronics Corporation UPD70F3574GKA-GAK-AX	384 KB	Internal	80-LFQFP (12x12)	28 K	80-LQFP	61	32-Bit	Surface Mount	85 °C	-40 °C			DMA LCD LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz	10 b	14
Renesas Electronics Corporation UPD70F3572GBA2-GAH-QS-AX	512 KB	Internal	64-LFQFP (10x10)		64-LQFP	45	32-Bit	Surface Mount	125 °C	-40 °C	10 b 12		DMA LCD LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz
Renesas Electronics Corporation UPD70F3570GBA-GAH-E3-AX	256 KB	Internal	64-LFQFP (10x10)	24 K	64-LQFP	45	32-Bit	Surface Mount	85 °C	-40 °C	10 b 12		DMA LCD LVD POR PWM WDT	5.5 V	3 V	32 K	FLASH	V850E2S	CANbus CSI I2C LINbus UART/USART	48 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 9.90

Description

General part information

V850E2/Fx4-L Series

The V850E2/Fx4-L is supported only for the customers who have already adopted these products. For new adoption, please consider RH850/F1L or RH850/F1H products.
