231,GY

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	231,GY

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	95.25 g
Weight	0.21 lb

Part	Weight	Weight	Features	Features	Material Flammability Rating	Design	Ratings	Thickness	Thickness	Color	Area (L x W)	Area (L x W)	Material	Container Type	Height [z]	Height [z]
Serpac 231,BK	95.25 g	0.21 lb	Battery Compartment PCB Supports	9 V	UL94 HB	Hand Held Split Sides	IP40 NEMA 1	2.54 mm	0.1 in	Black	14.2 in²	92 cm˛	Plastic ABS	Box	38.1 mm	1.5 in
Serpac 231,GY	95.25 g	0.21 lb	Battery Compartment PCB Supports	9 V	UL94 HB	Hand Held Split Sides	IP40 NEMA 1	2.54 mm	0.1 in	Gray	14.2 in²	92 cm˛	Plastic ABS	Box	38.1 mm	1.5 in
Serpac 231,AL	95.25 g	0.21 lb	Battery Compartment PCB Supports	9 V	UL94 HB	Hand Held Split Sides	IP40 NEMA 1	2.54 mm	0.1 in	Almond	14.2 in²	92 cm˛	Plastic ABS	Box	38.1 mm	1.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

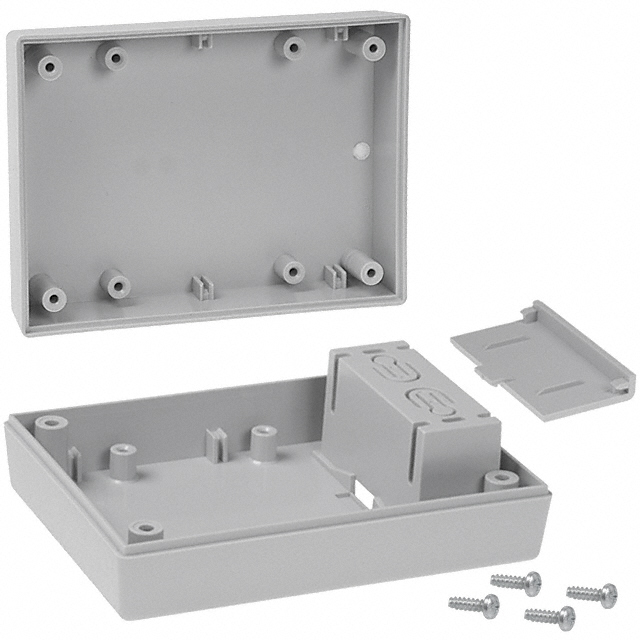

Box Plastic, ABS Gray Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.500" (38.10mm)
