LY L296-P1R2-26-0-20-R18-Z
ams-OSRAM USA INC.

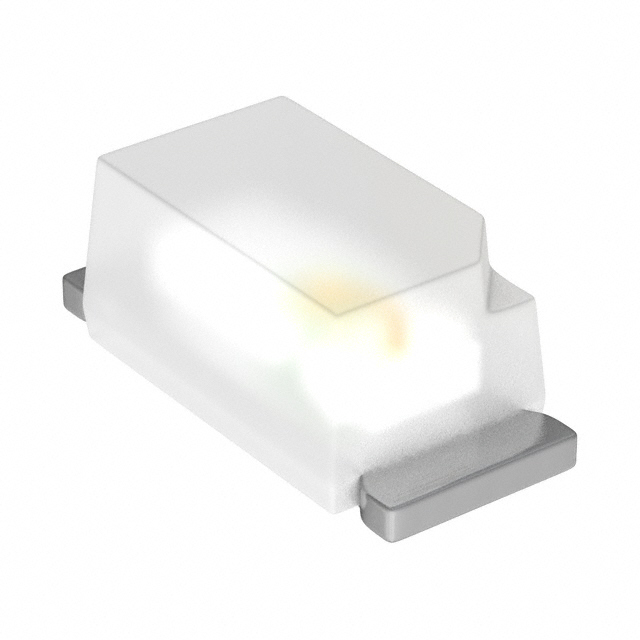

LED UNI-COLOR YELLOW 591NM 2-PIN CHIP 0603(1608METRIC) T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LY L296-P1R2-26-0-20-R18-Z
ams-OSRAM USA INC.
LED UNI-COLOR YELLOW 591NM 2-PIN CHIP 0603(1608METRIC) T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LY L296-P1R2-26-0-20-R18-Z |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | White |
| Lens Size [x] | 1.3 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 112.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.7 mm |
| Size / Dimension [y] | 0.8 mm |
| Viewing Angle | 160 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 588 nm |
