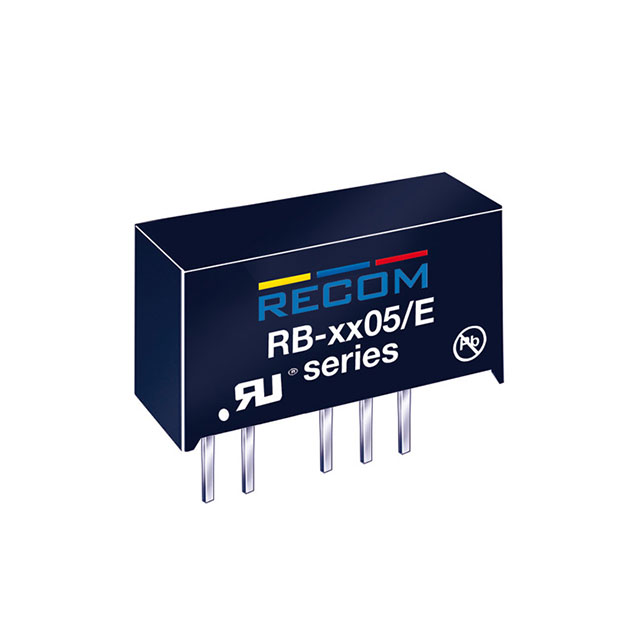

RB-0505S/EHP

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 05VIN 05VOUT CONV DC/DC

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RB-0505S/EHP

Applications	ITE (Commercial)
Current - Output (Max) [Max]	200 mA
Efficiency	84 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 6 Leads
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.24 "
Size / Dimension [y]	6 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	2000 V
Voltage - Output 1	5 V

RB-3.305 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 1kV UNREG 24Vin 9Vout

Part	Applications	Number of Outputs	Mounting Type	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Voltage - Isolation	Efficiency	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
RECOM Power RB-2405S/EP	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	100 °C	-40 °C	SCP	5 V	26.4 V	21.6 V	7-SIP Module 6 Leads	1000 V
RECOM Power RB-0505S/E	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	100 °C	-40 °C	SCP	5 V	5.5 V	4.5 V	7-SIP Module 6 Leads	1000 V	84 %
RECOM Power RB-1205S/E	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	100 °C	-40 °C	SCP	5 V	13.2 V	10.8 V	7-SIP Module 6 Leads	1000 V	84 %
RECOM Power RB-1205S/EHP	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	100 °C	-40 °C	SCP	5 V	13.2 V	10.8 V	7-SIP Module 6 Leads	2000 V	84 %
RECOM Power RB-3.305D/P	ITE (Commercial)	2	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm		85 °C	-40 °C	SCP	5 V	3.6 V	3 V	7-SIP Module 5 Leads	1000 V	78 %	100 mA	100 mA	-5 V
RECOM Power RB-0505S/EHP	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	100 °C	-40 °C	SCP	5 V	5.5 V	4.5 V	7-SIP Module 6 Leads	2000 V	84 %
RECOM Power RB-3.305S/EP	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	100 °C	-40 °C	SCP	5 V	3.63 V	2.97 V	7-SIP Module 6 Leads	1000 V	83 %
RECOM Power RB-3.305S/E	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	100 °C	-40 °C	SCP	5 V	3.63 V	2.97 V	7-SIP Module 6 Leads	1000 V	83 %
RECOM Power RB-3.305S	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	85 °C	-40 °C	SCP	5 V	3.6 V	3 V	7-SIP Module 5 Leads	1000 V	78 %
RECOM Power RB-0505S	ITE (Commercial)	1	Through Hole	Isolated Module	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	200 mA	85 °C	-40 °C	SCP	5 V	5.5 V	4.5 V	7-SIP Module 5 Leads	1000 V	78 %
