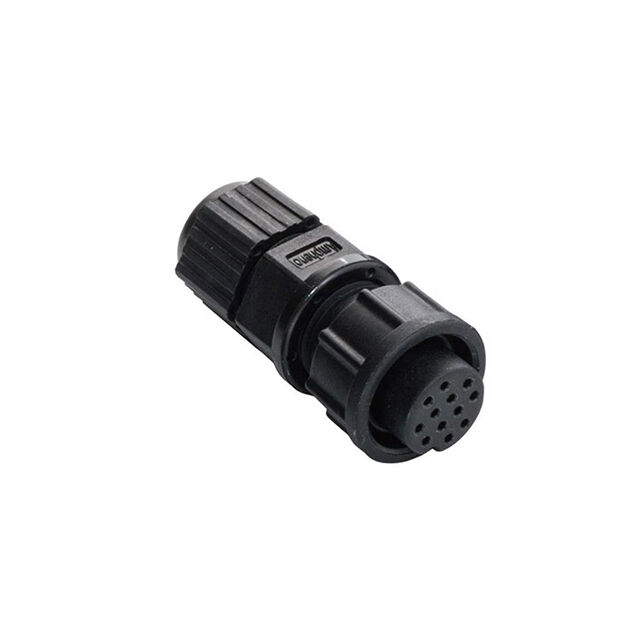

BB-03BFFA-LL6001

Active

Amphenol LTW

STANDARD

Deep-Dive with AI

Search across all available documentation for this part.

BB-03BFFA-LL6001

Active

Amphenol LTW

STANDARD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BB-03BFFA-LL6001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP66
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	250 VAC

BB-03BFFA Series

Part	Features	Shell Size - Insert	Shielding	Color	Orientation	Contact Material	Shell Finish	Material Flammability Rating	Contact Finish - Mating	Connector Type	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Primary Material	Insert Material	Current Rating (Amps)	Ingress Protection	Voltage Rating	Shell Material	Fastening Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Number of Positions	Termination	Cable Opening [diameter]	Cable Opening [diameter]
Amphenol LTW BB-03BFFA-SL6001	Backshell Coupling Nut	B	Unshielded	Black	Keyed	Copper Alloy	Nickel	UL94 V-0	Gold	Female Sockets Plug	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Plastic	Polyamide (PA) Nylon Glass Filled	10 A	IP66	250 VAC
Amphenol LTW BB-03BFFA-LL6001	Backshell Coupling Nut	B	Unshielded	Black	A	Copper Alloy		UL94 V-0	Gold	Female Sockets Plug	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Plastic	Polyamide (PA) Nylon Glass Filled	10 A	IP66	250 VAC	Glass Filled Nylon Polyamide (PA)	Bayonet Lock
Amphenol LTW BB-03BFFA-QL8MPP	Backshell Strain Relief	B	Unshielded	Black	Keyed	Copper Alloy		UL94 V-0	Gold	Female Sockets Plug		-40 °C	105 ░C	Free Hanging (In-Line)	Plastic	Polyamide (PA) Nylon Glass Filled	10 A	IP68 - Dust Tight Waterproof	300 VAC	Glass Filled Nylon Polyamide (PA)	Push-Pull	8 mm	6 mm	0.315 in	0.236 in	3	Crimp
Amphenol LTW BB-03BFFA-SL7001	Backshell Coupling Nut	B	Unshielded	Black	Keyed	Copper Alloy	Nickel	UL94 V-0	Gold	Female Sockets Plug	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Plastic	Polyamide (PA) Nylon Glass Filled	10 A	IP67 - Dust Tight Waterproof	250 VAC									4.5 mm 6.5 mm	0.177 in 0.256 in
Amphenol LTW BB-03BFFA-LL7001	Backshell Coupling Nut	B	Unshielded	Black	Keyed	Copper Alloy			Gold	Female Sockets Plug	Nylon Polyamide (PA)	-40 °C	105 ░C	Free Hanging (In-Line)	Plastic		10 A	IP67 - Dust Tight Waterproof		Glass Filled Nylon Polyamide (PA)	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.87

Description

General part information

BB-03BFFA Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
