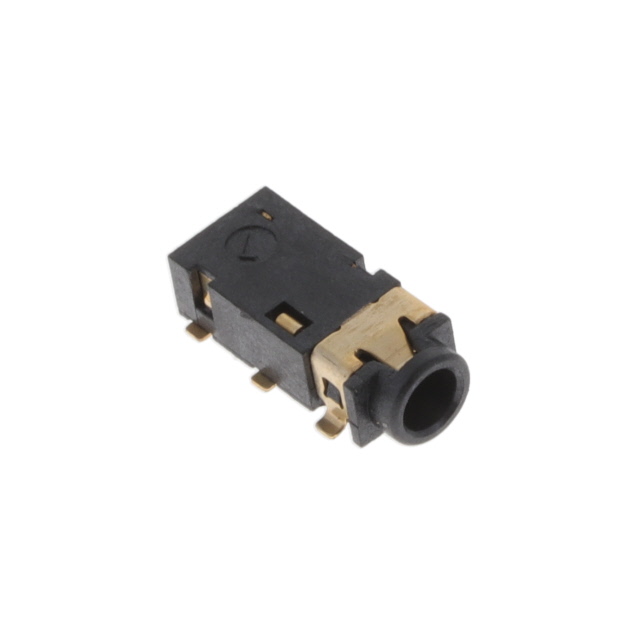

ASJ-145L-I-T/R
ActiveAdam Tech
AUDIO JACK
Deep-Dive with AI
Search across all available documentation for this part.
ASJ-145L-I-T/R
ActiveAdam Tech
AUDIO JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-145L-I-T/R |
|---|---|
| Actual Diameter [diameter] | 2.6 mm |
| Actual Diameter [diameter] | 0.102 in |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Phosphor Bronze |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter [diameter] | 2.5 mm ID |
| Industry Recognized Mating Diameter [diameter] | 0.098 " |
| Insulation Color | Black |
| Internal Switch(s) | Two Switches |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts [custom] | 4 |
| Number of Positions/Contacts [custom] | 6 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.32 | |
| 10 | $ 1.00 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.32 | ||
| 10 | $ 1.00 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.83 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.70 | |||
| Tape & Reel (TR) | 1000 | $ 0.60 | ||
Description
General part information
ASJ-145 Series
2.50mm ID (0.098") Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
Documents
Technical documentation and resources
