LS8397

Active

LSI/CSI

STEPPER MOTOR CONTROLLER

Search across all available documentation for this part.

Active

LSI/CSI

STEPPER MOTOR CONTROLLER

Technical Specifications

Parameters and characteristics for this part

Specification	LS8397

Applications	General Purpose
Function	Controller - Commutation, Direction Management
Interface	PWM
Motor Type - Stepper	Unipolar, Bipolar
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)

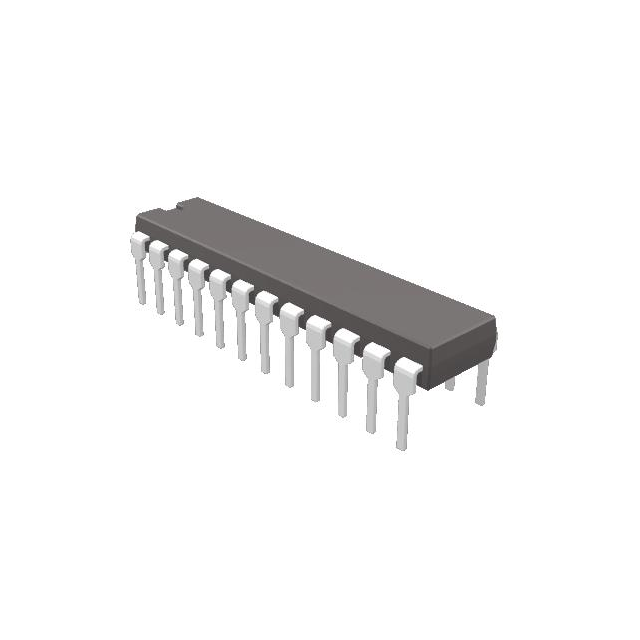

Package / Case	24-DIP
Package / Case	0.6 in
Package / Case	15.24 mm
Step Resolution	1, 0.5
Supplier Device Package	24-DIP
Technology	Power MOSFET
Voltage - Supply [Max]	7 V
Voltage - Supply [Min]	4.75 V

Part	Supplier Device Package	Technology	Mounting Type	Step Resolution	Interface	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Function	Motor Type - Stepper	Package / Case	Package / Case	Package / Case	Applications
LSI/CSI LS8397	24-DIP	Power MOSFET	Through Hole	0.5 1	PWM	Half Bridge (2)	150 °C	-40 °C	4.75 V	7 V	Controller - Commutation Direction Management	Bipolar Unipolar	24-DIP	0.6 in	15.24 mm	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar, Unipolar Motor Driver Power MOSFET PWM 24-DIP
