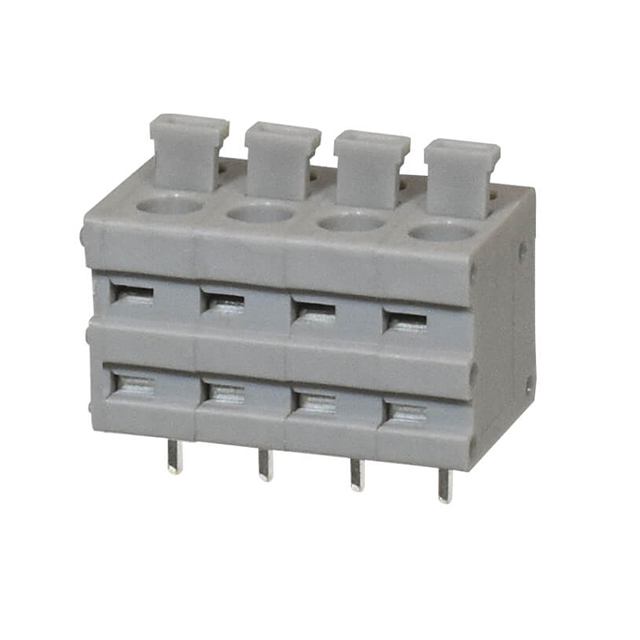

TBL009V-500-04GY-2GY

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 5.00,

Search across all available documentation for this part.

Active

CUI Devices

TERMINAL BLOCK, SCREWLESS, 5.00,

Technical Specifications

Parameters and characteristics for this part

Specification	TBL009V-500-04GY-2GY

Color	Gray
Contact Material - Plating	Copper Alloy - Tin Plated
Current	10 A
Features	Push Button Actuated, Interlocking (Side)
Mating Orientation	Vertical with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	4
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screwless - Push Button Clamp

Part	Color	Positions Per Level	Wire Termination	Number of Levels	Features	Voltage	Current	Contact Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Mating Orientation
CUI Devices TBL009V-500-04GY-2GY	Gray	4	Screwless - Push Button Clamp	1	Interlocking (Side) Push Button Actuated	300 V	10 A	Copper Alloy - Tin Plated	26 AWG	16 AWG	Through Hole	-40 °C	105 ░C	5 mm	0.197 in	Vertical with Board

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
