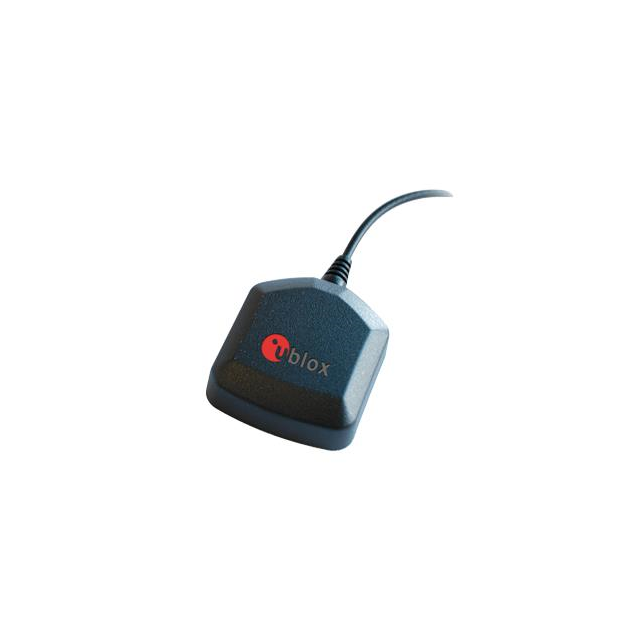

ANN-MS-0-005-0
Activeu-blox
RF ANT GPS 1.572GHZ-1.578GHZ
Deep-Dive with AI
Search across all available documentation for this part.
ANN-MS-0-005-0
Activeu-blox
RF ANT GPS 1.572GHZ-1.578GHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANN-MS-0-005-0 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | LNA, Cable - 5m |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.578 GHz |
| Frequency Range [Min] | 1.572 GHz |
| Gain | 29 dBi |
| Height (Max) [Max] | 13 mm |
| Height (Max) [Max] | 0.512 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | SMA |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.41 | |
| 10 | $ 26.23 | |||
| 50 | $ 18.41 | |||
| 100 | $ 14.74 | |||
Description
General part information
ANN-MS Series
RF ANTENNA GPS Module SMA Magnetic
