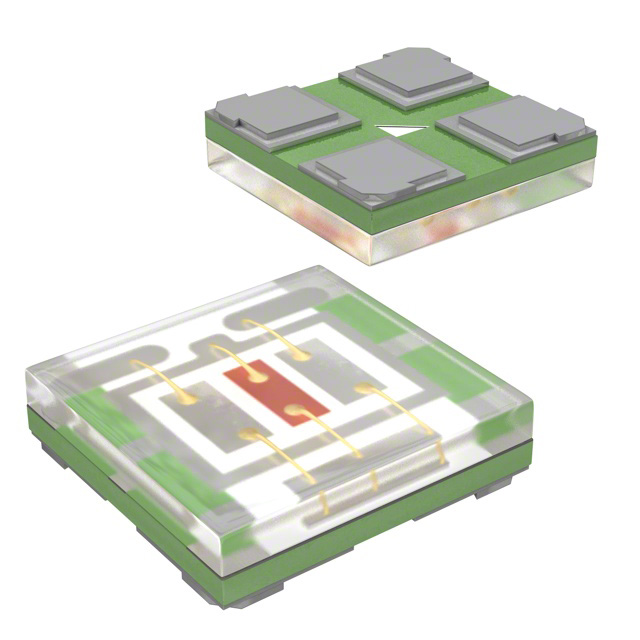

SML-LX0404SIUPGUSB
ActiveLumex Opto/Components Inc.
LED RGB CLEAR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-LX0404SIUPGUSB
ActiveLumex Opto/Components Inc.
LED RGB CLEAR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LX0404SIUPGUSB |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 2 mA |
| Current - Test [custom] | 2 mA |
| Current - Test [custom] | 2 mA |
| Height (Max) [Max] [z] | 0.3 mm |
| Lens Color | Colorless |
| Lens Size | 1 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 40 mcd |
| Millicandela Rating [custom] | 20 mcd |
| Millicandela Rating [custom] | 30 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0404 |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2.85 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.73 V |
| Voltage - Forward (Vf) (Typ) [custom] | 1.95 V |
| Wavelength - Peak | 632 nm, 465 nm, 518 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.23 | |
| 10 | $ 0.78 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.44 | |||
| Digi-Reel® | 1 | $ 1.23 | ||
| 10 | $ 0.78 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.44 | |||
| Tape & Reel (TR) | 2000 | $ 0.41 | ||
| 6000 | $ 0.40 | |||
| 10000 | $ 0.40 | |||
Description
General part information
SML-LX0404 Series
Red, Green, Blue (RGB) LED Indication - Discrete 1.95V Red, 2.85V Green, 2.73V Blue 0404 (1010 Metric)
