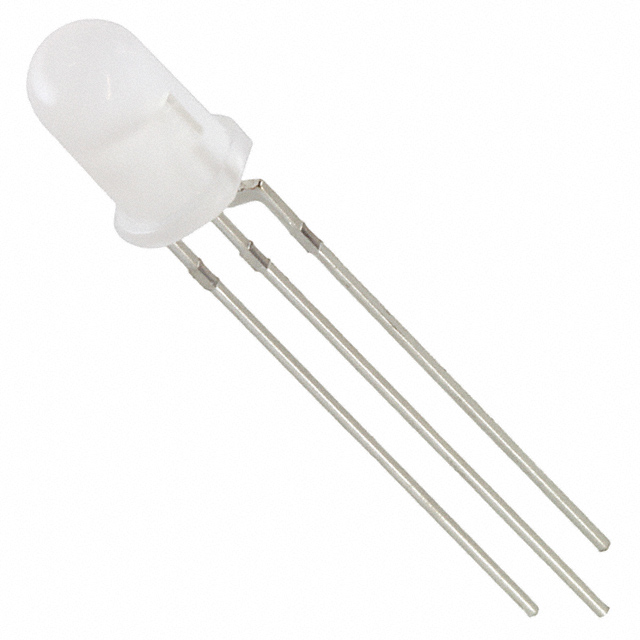

MV5439A
ObsoleteEverlight Electronics Co Ltd
LED GREEN/RED DIFF 3 LEAD T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MV5439A
ObsoleteEverlight Electronics Co Ltd
LED GREEN/RED DIFF 3 LEAD T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MV5439A |
|---|---|
| Color | Red, Green |
| Configuration | Common Anode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 10.08 mm |
| Lens Color | White |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 6 mcd, 25 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | 3 LEAD Bi-Color T-1 3/4 |
| Viewing Angle | 100 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V, 2.3 V |
| Wavelength - Peak | 565 nm, 660 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MV5439 Series
Green, Red LED Indication - Discrete 2.3V Green, 1.7V Red Radial - 3 Leads
