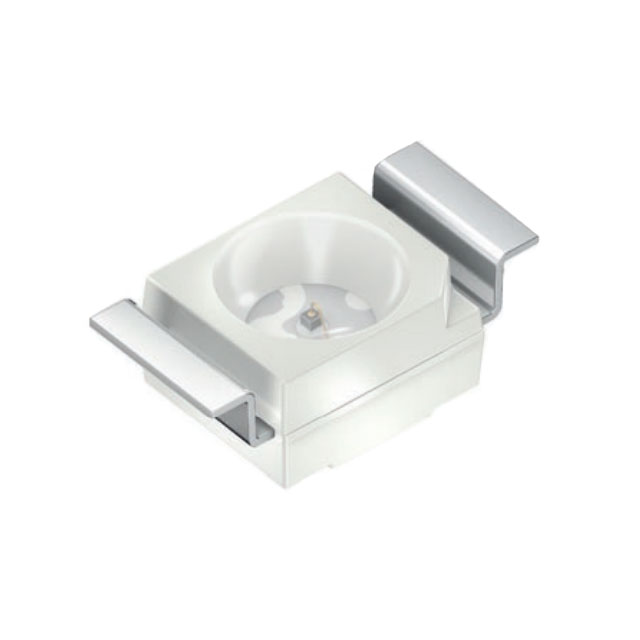

SFH 4253 R
Activeams-OSRAM USA INC.
EMITTER IR 860NM 70MA PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFH 4253 R
Activeams-OSRAM USA INC.
EMITTER IR 860NM 70MA PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 4253 R |
|---|---|
| Current - DC Forward (If) (Max) | 70 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-PLCC |
| Radiant Intensity (Ie) Min @ If | 10 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 860 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.79 | |
| 10 | $ 0.52 | |||
| 100 | $ 0.34 | |||
| 1000 | $ 0.27 | |||
| Digi-Reel® | 1 | $ 0.79 | ||
| 10 | $ 0.52 | |||
| 100 | $ 0.34 | |||
| 1000 | $ 0.27 | |||
| Tape & Reel (TR) | 2000 | $ 0.23 | ||
| 4000 | $ 0.22 | |||
| 6000 | $ 0.22 | |||
Description
General part information
SFH4253 Series
Infrared (IR) Emitter 860nm 1.6V 70mA 10mW/sr @ 70mA 120° 2-PLCC
