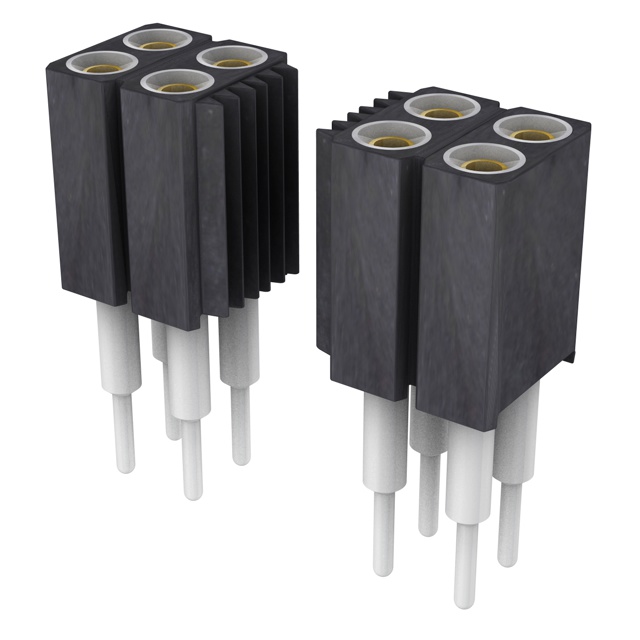

803-83-010-10-269101

Active

PRECI-DIP SA

CONN SOCKET 10POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

803-83-010-10-269101

Active

PRECI-DIP SA

CONN SOCKET 10POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	803-83-010-10-269101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Post	2.95 mm
Contact Length - Post	0.116 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

803-83 Series

...

Part	Contact Shape	Termination	Number of Positions	Contact Finish - Post	Mounting Type	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post [x]	Insulation Color	Contact Material	Connector Type	Insulation Material	Contact Type	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Features
PRECI-DIP SA 803-83-046-20-001101	Circular	Solder	46	Tin	Through Hole Right Angle	2	0.1 in	2.54 mm	All	3.2 mm	0.126 in	Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C
PRECI-DIP SA 803-83-010-10-269101	Circular	Solder	10	Tin	Through Hole	2	0.1 in	2.54 mm	All	2.95 mm		Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	0.435 in	11.05 mm	0.116 in
PRECI-DIP SA 803-83-070-10-132101	Circular	Solder	70	Tin	Through Hole	2	0.1 in	2.54 mm	All	3 mm		Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C			0.118 in	7 mm	0.276 in
PRECI-DIP SA 803-83-032-10-132101	Circular	Solder		Tin	Through Hole	2	0.1 in	2.54 mm	All	3 mm		Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C			0.118 in	7 mm	0.276 in
PRECI-DIP SA 803-83-048-53-001101	Circular	Wire Wrap	48	Tin	Through Hole	2	0.1 in	2.54 mm	All	12.78 mm		Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C			0.503 in	7 mm	0.276 in
PRECI-DIP SA 803-83-056-10-012101	Circular	Solder	56	Tin	Through Hole	2	0.1 in	2.54 mm	All		0.125 in	Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C				4.2 mm	0.165 in	3.18 mm
PRECI-DIP SA 803-83-046-10-003101	Circular	Solder	46	Tin	Through Hole	2	0.1 in	2.54 mm	All	3.08 mm		Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	0.312 in	7.92 mm	0.121 in
PRECI-DIP SA 803-83-046-65-001101	Circular	Press-Fit Solder	46	Tin	Through Hole	2	0.1 in	2.54 mm	All	2.79 mm	0.11 in	Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C				7 mm	0.276 in
PRECI-DIP SA 803-83-018-30-480101	Circular	Solder	18	Tin	Surface Mount	2	0.1 in	2.54 mm	All			Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C				4.2 mm	0.165 in
PRECI-DIP SA 803-83-012-30-001191	Circular	Solder	12	Tin	Surface Mount	2	0.1 in	2.54 mm	All			Black	Beryllium Copper	Socket	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Female Socket	UL94 V-0	Push-Pull	Gold	2.54 mm	0.1 in	3 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	0.339 "	8.61 mm					Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.97
		10	$ 2.52
		100	$ 2.14
		500	$ 1.74

Description

General part information

803-83 Series

10 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
