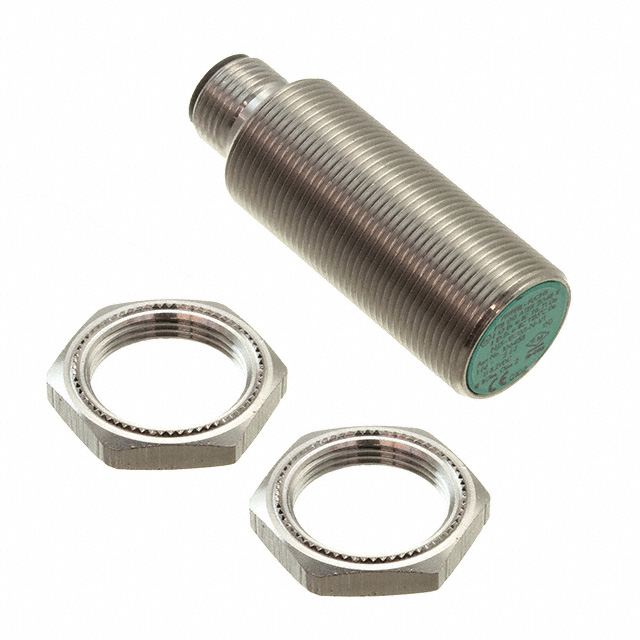

NJ5-18GM-N-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NJ5-18GM-N-V1

Indicator [custom]	No Indicator
Ingress Protection	IP67
Material - Body	Stainless Steel
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Cylinder, Threaded - M18
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	5 V

Part	Termination Style	Package / Case	Material - Body	Shielding	Output Type	Indicator [custom]	Sensor Type	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Operating Temperature [custom]	Voltage - Supply	Operating Temperature [Max]	Operating Temperature [Min]
PEPPERL+FUCHS NJ5-18GM-N-V1	Connector	Cylinder Threaded - M18	Stainless Steel	Unshielded	SCR-NC 2-Wire	No Indicator	Inductive	0.197 in	5 mm	5 V	25 V	IP67	-25 °C 100 °C
PEPPERL+FUCHS NJ5-18GK-N	Cable	Cylinder Threaded - M18	Polybutylene Terephthalate (PBT)	Unshielded	SCR-NC 2-Wire	No Indicator	Inductive	0.197 in	5 mm			IP66 IP68	-25 °C 100 °C	8.2 V
PEPPERL+FUCHS NJ5-18GM50-E2-V1	Connector	Cylinder Threaded - M18	Stainless Steel	Unshielded	PNP-NO 3-Wire	LED	Inductive	0.197 in	5 mm	10 VDC	60 V	IP67			70 °C	-25 °C
PEPPERL+FUCHS NJ5-18GM50-A2-V1	Connector	Cylinder Threaded - M18	Stainless Steel	Unshielded	4-Wire PNP-NC/NO	LED	Inductive	0.197 in	5 mm	10 VDC	60 V	IP67			70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 5MM NAMUR
