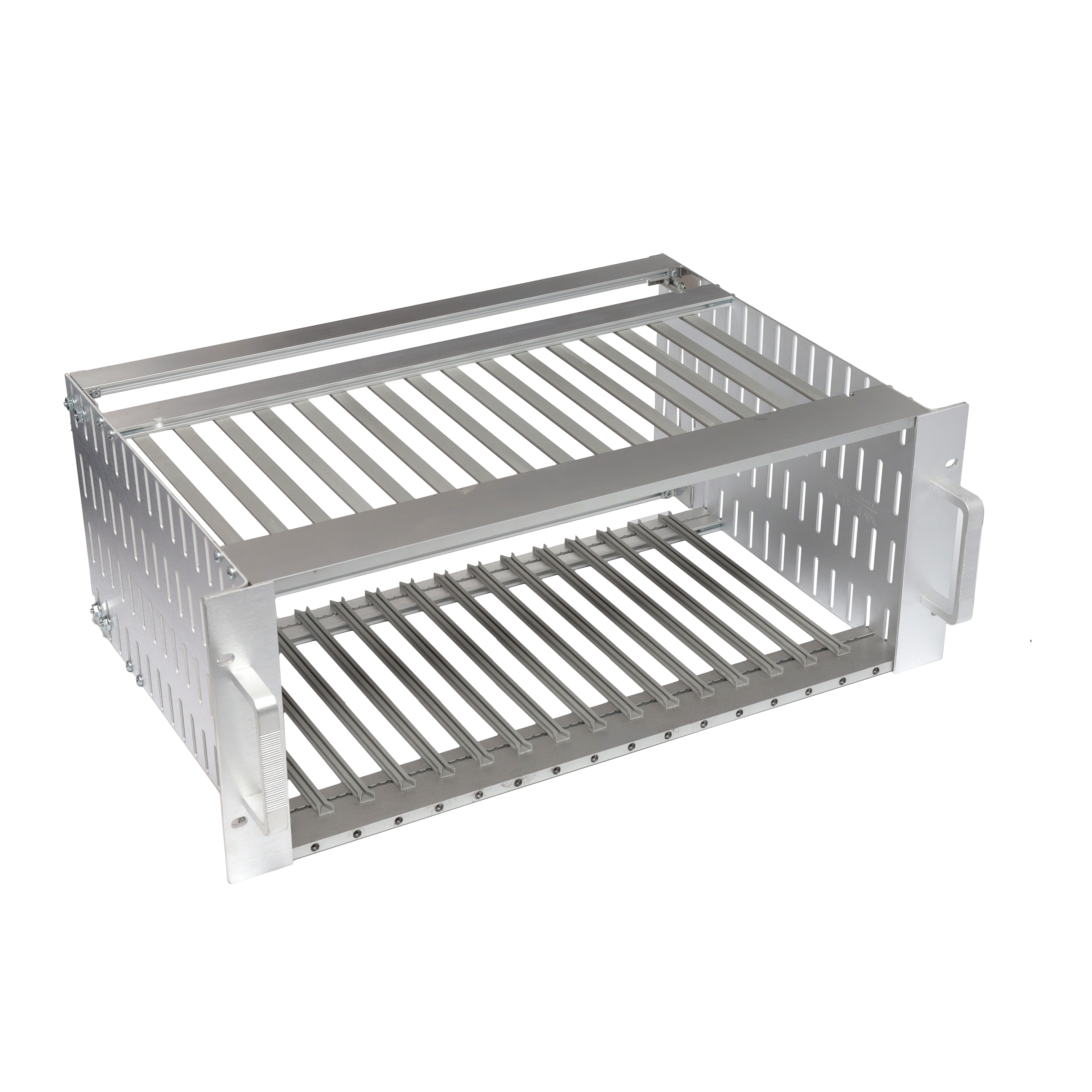

CCM15S/90

Active

Vector Electronics

CARD RACK ASSEMBLY ALUM 12X19

Search across all available documentation for this part.

Active

Vector Electronics

CARD RACK ASSEMBLY ALUM 12X19

Technical Specifications

Parameters and characteristics for this part

Specification	CCM15S/90

Card Size Range [x]	9.6 in
Card Size Range [x]	243.84 mm
Card Size Range [z]	6.25 in
Card Size Range [z]	158.75 mm
Guide Method	No Card Guide
Height [z]	7 "
Height [z]	177.8 mm
Material	Aluminum
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	482.6 mm
Size / Dimension [y]	19 in
Type	Assembled Card Mount Subracks

Part	Material	Height [z]	Height [z]	Type	Card Size Range [z]	Card Size Range [x]	Card Size Range [z]	Card Size Range [x]	Guide Method	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Vector Electronics CCM15S/90	Aluminum	7 "	177.8 mm	Assembled Card Mount Subracks	6.25 in	9.6 in	158.75 mm	243.84 mm	No Card Guide	12 in	304.8 mm	482.6 mm	19 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Aluminum Assembled Card Mount Subracks 4U = 7.000" (177.80mm)
