TLV3012AIDBVT
ActiveLOW-POWER COMPARATOR WITH REFERENCE (PUSH-PULL)
Deep-Dive with AI
Search across all available documentation for this part.
TLV3012AIDBVT
ActiveLOW-POWER COMPARATOR WITH REFERENCE (PUSH-PULL)
Technical Specifications
Parameters and characteristics for this part
| Specification | TLV3012AIDBVT |
|---|---|
| CMRR, PSRR (Typ) | 80 dB, 74 dB |
| Current - Input Bias (Max) | 10 pA |
| Current - Quiescent (Max) [Max] | 5 µA |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |

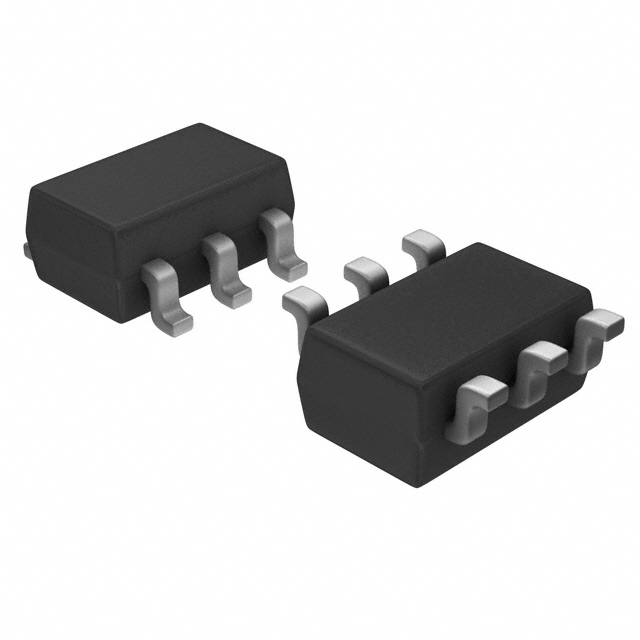

| Package / Case | SOT-23-6 |
| Propagation Delay (Max) [Max] | 13.5 µs |
| Supplier Device Package | SOT-23-6 |
| Type | with Voltage Reference |
| Voltage - Input Offset (Max) | 12 mV |
| Voltage - Supply, Single/Dual (±) [Max] | 5.5 V |
| Voltage - Supply, Single/Dual (±) [Min] | 1.8 V |
TLV3012-Q1 Series
Automotive micropower comparator with integrated reference and push-pull output
| Part | Type | Propagation Delay (Max) [Max] | Package / Case | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | CMRR, PSRR (Typ) | Current - Input Bias (Max) | Current - Quiescent (Max) [Max] | Voltage - Supply, Single/Dual (±) [Min] | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Input Offset (Max) | Number of Elements | Output Type | Qualification | Current - Output (Typ) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | with Voltage Reference | 13.5 µs | SOT-23-6 | Surface Mount | 85 °C | -40 °C | SOT-23-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 12 mV | 1 | Push-Pull | |||
Texas Instruments | with Voltage Reference | 13.5 µs | SOT-23-6 | Surface Mount | 85 °C | -40 °C | SOT-23-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 12 mV | 1 | Push-Pull | |||
Texas Instruments | with Voltage Reference | 13.5 µs | SOT-23-6 | Surface Mount | 85 °C | -40 °C | SOT-23-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 12 mV | 1 | Push-Pull | |||
Texas Instruments | with Voltage Reference | 13.5 µs | 6-TSSOP SC-88 SOT-363 | Surface Mount | 85 °C | -40 °C | SC-70-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 12 mV | 1 | Push-Pull | |||
Texas Instruments | with Voltage Reference | 13.5 µs | SOT-23-6 | Surface Mount | 85 °C | -40 °C | SOT-23-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 12 mV | 1 | Push-Pull | |||
Texas Instruments | with Voltage Reference | 13.5 µs | 6-TSSOP SC-88 SOT-363 | Surface Mount | 125 °C | -40 °C | SC-70-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 15 mV | 1 | Push-Pull | AEC-Q100 | 0.5 mA | Automotive |
Texas Instruments | with Voltage Reference | 13.5 µs | 6-TSSOP SC-88 SOT-363 | Surface Mount | 85 °C | -40 °C | SC-70-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 12 mV | 1 | Push-Pull | |||
Texas Instruments | with Voltage Reference | 13.5 µs | 6-TSSOP SC-88 SOT-363 | Surface Mount | 85 °C | -40 °C | SC-70-6 | 74 dB 80 dB | 10 pA | 5 µA | 1.8 V | 5.5 V | 12 mV | 1 | Push-Pull |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.76 | |
| 10 | $ 2.48 | |||
| 25 | $ 2.35 | |||
| 100 | $ 2.03 | |||
| Digi-Reel® | 1 | $ 2.76 | ||
| 10 | $ 2.48 | |||
| 25 | $ 2.35 | |||
| 100 | $ 2.03 | |||
| Tape & Reel (TR) | 250 | $ 1.93 | ||
| 500 | $ 1.73 | |||
| 1250 | $ 1.46 | |||
| 2500 | $ 1.39 | |||
| 6250 | $ 1.34 | |||
| Texas Instruments | SMALL T&R | 1 | $ 2.09 | |
| 100 | $ 1.83 | |||
| 250 | $ 1.28 | |||
| 1000 | $ 1.03 | |||
Description
General part information
TLV3012-Q1 Series
The TLV3011 is a low-power, open-drain output comparator; the TLV3012 is a push-pull output comparator. Both devices feature an uncommitted on-chip voltage reference and have a 5 µA (maximum) quiescent current, an input common-mode range 200 mV beyond the supply rails, and single-supply operation from 1.8 V to 5.5 V. The integrated 1.242 V series voltage reference offers low 100 ppm/°C (maximum) drift, is stable with up to 10 nF capacitive load, and can provide up to 0.5 mA (typical) of output current.
The TLV3011B and TLV3012B "B" versions add power-on-reset (POR), fail-safe inputs, built-in hysteresis, a lower minimum supply voltage of 1.65 V and a 3.1 µA maximum quiescent current.
The family is available in both the tiny SOT23-6 package for space-conservative designs, and in the SC-70 package for even greater board area savings. All versions are specified for the temperature range of –40°C to +125°C.
