3280-7PG-3DC

Active

Conxall/Switchcraft

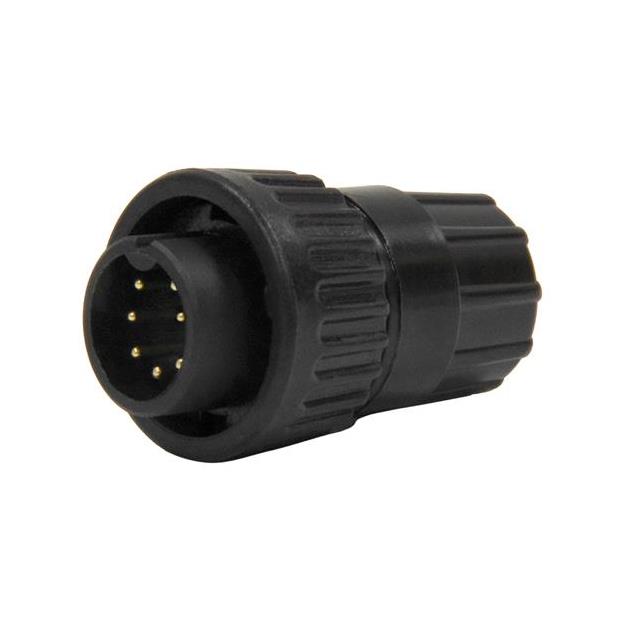

CONN PLUG MALE 7POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3280-7PG-3DC

Active

Conxall/Switchcraft

CONN PLUG MALE 7POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3280-7PG-3DC

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	5.6 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

3280-7P Series

Part	Termination	Shielding	Fastening Type	Contact Finish - Mating	Contact Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Features	Backshell Material, Plating	Number of Positions	Mounting Type	Voltage Rating	Color	Primary Material	Connector Type	Orientation	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3280-7PG-318	Crimp	Unshielded	Bayonet Lock	Gold	Brass	Weathertight	-40 °C	115 °C	Backshell	Nylon Polyamide (PA)	7	Free Hanging (In-Line)	600 V	Black	Plastic	Male Pins Plug	Keyed	5.6 A	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3280-7PG-518	Crimp	Unshielded	Bayonet Lock	Gold	Brass	Weathertight	-40 °C	115 °C	Backshell Cable Clamp	Nylon Polyamide (PA)	7	Free Hanging (In-Line)	600 V	Black	Plastic	Male Pins Plug	Keyed	5.6 A	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3280-7PG-515	Crimp	Unshielded	Bayonet Lock	Gold	Brass	Weathertight	-40 °C	115 °C	Backshell Cable Clamp	Nylon Polyamide (PA)	7	Free Hanging (In-Line)	600 V	Black	Plastic	Male Pins Plug	Keyed	5.6 A					0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 3280-7PG-3DC	Crimp	Unshielded	Bayonet Lock	Gold	Brass	Weathertight	-40 °C	115 °C	Backshell	Nylon Polyamide (PA)	7	Free Hanging (In-Line)	600 V	Black	Plastic	Male Pins Plug	Keyed	5.6 A
Conxall/Switchcraft 3280-7PG-321	Crimp	Unshielded	Bayonet Lock	Gold	Brass	Weathertight	-40 °C	115 °C	Backshell	Nylon Polyamide (PA)	7	Free Hanging (In-Line)	600 V	Black	Plastic	Male Pins Plug	Keyed	5.6 A							5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 3280-7PG-524	Crimp	Unshielded	Bayonet Lock	Gold	Brass	Weathertight	-40 °C	115 °C	Backshell Cable Clamp	Nylon Polyamide (PA)	7	Free Hanging (In-Line)	600 V	Black	Plastic	Male Pins Plug	Keyed	5.6 A							6.1 mm	6.86 mm	0.24 in	0.27 in
Conxall/Switchcraft 3280-7PG-521	Crimp	Unshielded	Bayonet Lock	Gold	Brass	Weathertight	-40 °C	115 °C	Backshell Cable Clamp	Nylon Polyamide (PA)	7	Free Hanging (In-Line)	600 V	Black	Plastic	Male Pins Plug	Keyed	5.6 A							5.33 mm	5.84 mm	0.21 in	0.23 in
