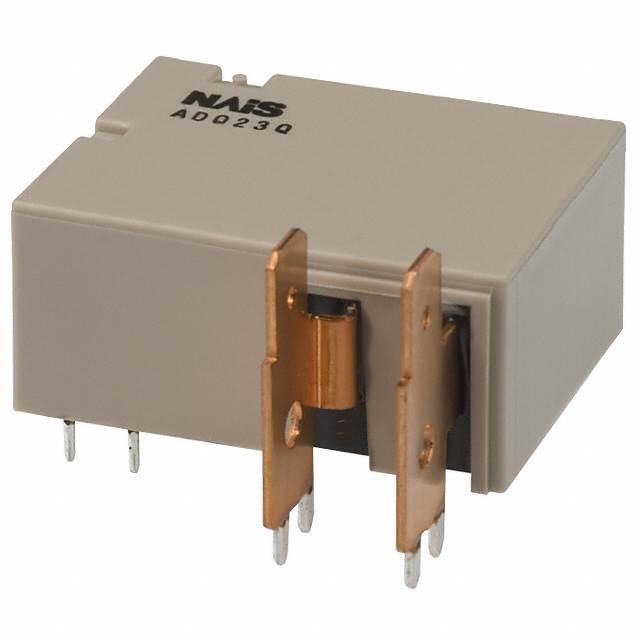

ADQ23Q006
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPST 30A 6V
Deep-Dive with AI
Search across all available documentation for this part.
ADQ23Q006
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPST 30A 6V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADQ23Q006 |
|---|---|
| Coil Current | 167 mA |
| Coil Resistance | 36 Ohms |
| Coil Type | Latching, Dual Coil |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Load - Max Switching [Max] | 7500 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 4.2 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC |
| Termination Style | PC Pin, Quick Connect |
| Termination Style | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.43 | |
Description
General part information
ADQ23Q Series
General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Through Hole
