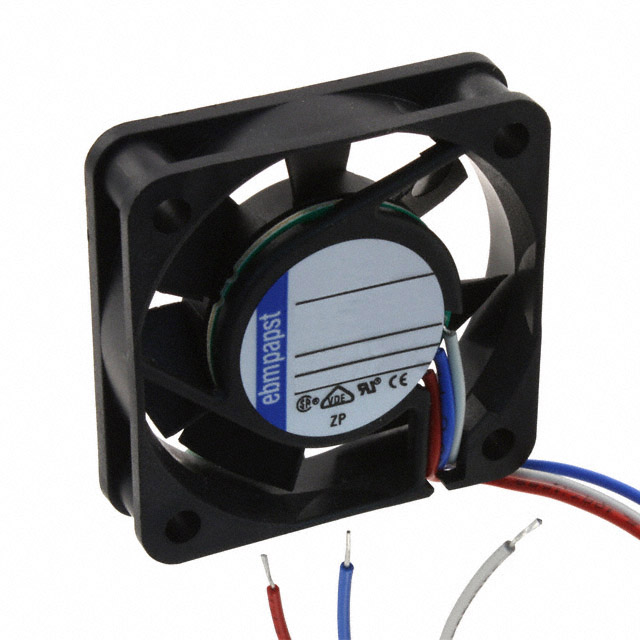

414 F/2

Active

ebm-papst Inc.

FAN AXIAL 40X10MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 40X10MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	414 F/2

Air Flow	4.7 CFM
Air Flow	0.132 mł/min
Approval Agency	UL, VDE, CSA
Bearing Type	Sintec
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	22.1 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	0.8 W
RPM	5400 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	20 VDC
Weight	0.038 lb
Weight	17.24 g
Width [y]	10 mm

Part	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Width [y]	Air Flow	Air Flow	Approval Agency	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Features	Power (Watts)	Termination	Material - Blade	RPM	Fan Type	Voltage - Rated	Material - Frame	Noise
ebm-papst Inc. 414 F/2	Sintec	20 VDC	28 VDC	10 mm	4.7 CFM	0.132 mł/min	CSA UL VDE	40 mm	Square	40 mm	-20 °C	70 °C	-20 C	70 °C	0.038 lb	17.24 g	Speed Sensor (Tach)	0.8 W	3 Wire Leads	Fiberglass Reinforced Nylon Polyamide (PA)	5400 RPM	Tubeaxial	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	22.1 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Sintec 4.7 CFM (0.132m³/min) 3 Wire Leads
