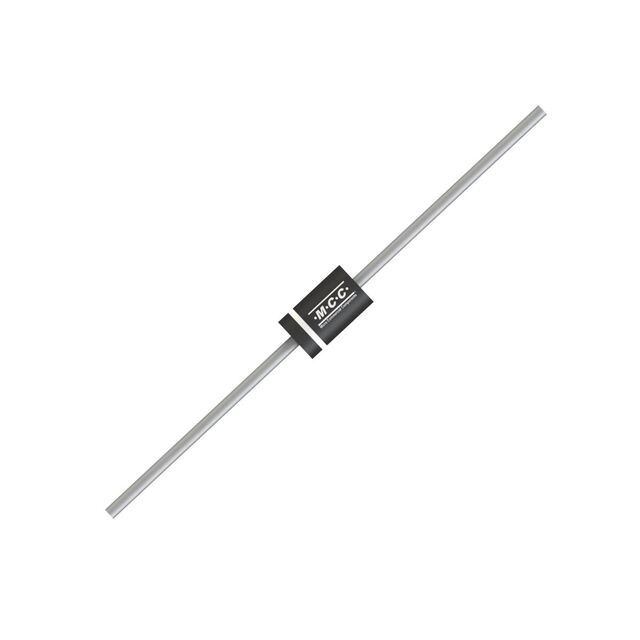

UF5407GP-BP

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	UF5407GP-BP

Capacitance @ Vr, F	50 pF
Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-201AD, Axial
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-201AD
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Supplier Device Package	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Capacitance @ Vr, F	Package / Case	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Mounting Type
Micro Commercial Components UF5407GP-BP	DO-201AD	75 ns	800 V	Standard	150 °C	-55 °C	50 pF	DO-201AD Axial	200 mA 500 ns	3 A	10 µA	1.7 V	Through Hole
Micro Commercial Components UF5407-TP	DO-201AD	75 ns	800 V	Standard	150 °C	-55 °C	50 pF	DO-201AD Axial	200 mA 500 ns	3 A	10 µA	1.7 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12000	$ 0.09

General part information

Diode 800 V 3A Through Hole DO-201AD
