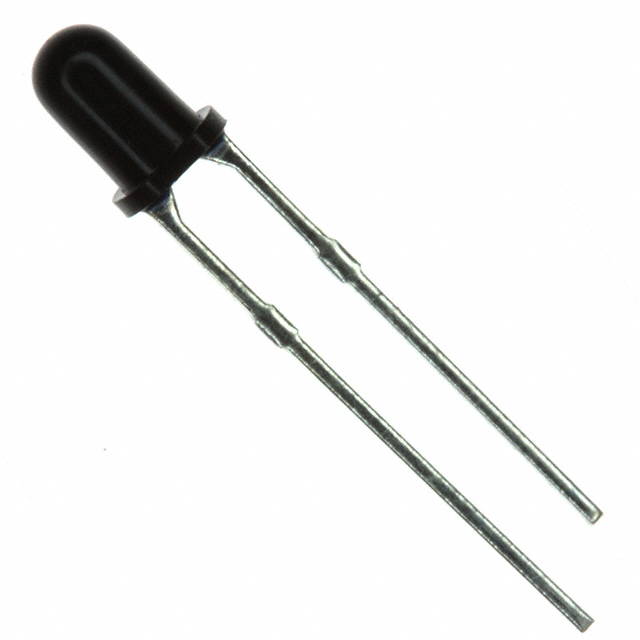

PNA1801LS0NC
ObsoletePanasonic Industrial Automation Sales
SENSOR PHOTO 800NM TOP VIEW T1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PNA1801LS0NC
ObsoletePanasonic Industrial Automation Sales
SENSOR PHOTO 800NM TOP VIEW T1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PNA1801LS0NC |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 20 mA |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Package / Case | T-1 |
| Power - Max [Max] | 100 mW |
| Viewing Angle | 60 ° |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
| Wavelength | 800 nm |
PNA1801 Series
| Part | Package / Case | Orientation | Mounting Type | Current - Collector (Ic) (Max) [Max] | Viewing Angle | Wavelength | Voltage - Collector Emitter Breakdown (Max) [Max] | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | T-1 | Top View | Through Hole | 20 mA | 60 ° | 800 nm | 30 V | 100 mW |
Panasonic Industrial Automation Sales | T-1 | Top View | Through Hole | 20 mA | 60 ° | 800 nm | 30 V | 100 mW |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PNA1801 Series
Phototransistors 800nm Top View T-1
