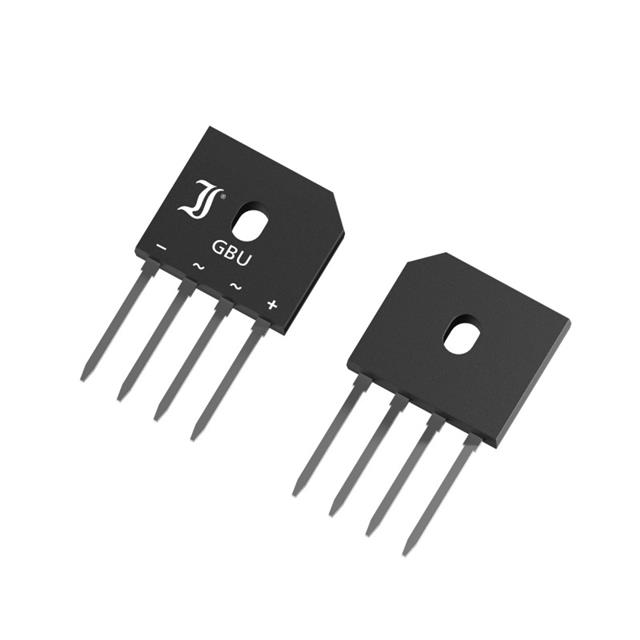

GBU8B-T

Active

Diotec Semiconductor

1BRECT, 100V, 8A

Search across all available documentation for this part.

Active

Diotec Semiconductor

1BRECT, 100V, 8A

Technical Specifications

Parameters and characteristics for this part

Specification	GBU8B-T

Current - Average Rectified (Io)	5.6 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-SIP, GBU
Supplier Device Package	GBU
Technology	Standard
Voltage - Peak Reverse (Max) [Max]	100 V

Part	Supplier Device Package	Mounting Type	Current - Average Rectified (Io)	Diode Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Technology
Diotec Semiconductor GBU8M-T	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	1000 V	Standard
Diotec Semiconductor GBU8G	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	400 V	Standard
Diotec Semiconductor GBU8D	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	200 V	Standard
Diotec Semiconductor GBU8J-T	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	600 V	Standard
Diotec Semiconductor GBU8A	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	50 V	Standard
Diotec Semiconductor GBU8B-T	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	100 V	Standard
Diotec Semiconductor GBU8G-T	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	400 V	Standard
Diotec Semiconductor GBU8K-T	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	800 V	Standard
Diotec Semiconductor GBU8A-T	GBU	Through Hole	5.6 A	Single Phase	150 °C	-50 °C	4-SIP GBU	5 µA	50 V	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 100 V Through Hole GBU
